Description
Key Technical Specifications
- Model Number: IC698CPE010
- Manufacturer: GE Fanuc (Emerson Automation)
- Series: PACSystems RX7i
- Component Type: Central Processing Unit (CPU)
- Microprocessor: 300 MHz Intel Celeron
- Memory: 10 MB Battery-Supported RAM + 10 MB Non-Volatile Flash
- Boolean Execution Speed: 0.33 ms per 1K instructions
- Communication Ports: Dual 10/100 Mbps Ethernet, RS-232, RS-485
- Backplane Standard: VME64 (ANSI/VITA 1)
Functional Role & Application Analysis
The GE IC698CPE010 is the central processing brain for the PACSystems RX7i platform. It is designed to handle complex, real-time control logic and high-speed data processing for large-scale industrial applications. In heavy manufacturing and infrastructure, processing bottlenecks can halt production. This module solves that problem by utilizing a 300 MHz Celeron microprocessor and VME64 backplane architecture to deliver deterministic, high-speed I/O data transfers. It bridges legacy 90-70 series modules with modern Ethernet networking, protecting your existing hardware investment while enabling modern connectivity.
Typical use cases include:
- Complex Machine Control: Executing advanced floating-point math and motion control algorithms for large manufacturing lines.
- Infrastructure Automation: Managing distributed control networks for water treatment plants and transit systems using dual Ethernet ports.
- System Migrations: Serving as the primary upgrade path from legacy Series 90-70 PLCs to the modern RX7i platform without replacing field wiring.
- High-Speed Data Exchange: Utilizing Ethernet Global Data (EGD) and Modbus TCP for real-time peer-to-peer communication between multiple controllers.
Our Quality Standard & Testing Process
We understand that the cost of a failed CPU in a critical process is measured in massive production losses. We have established a rigorous, multi-stage testing process to ensure every GE IC698CPE010 we ship is 100% functional and meets original equipment specifications.
- Visual & Component Inspection: All boards undergo professional cleaning and microscopic inspection to ensure no physical damage, corrosion, or compromised solder joints.
- Live System Test: The CPU is installed in a live RX7i test rack and run for 24 hours to verify continuous operation, backplane communication, and thermal stability.
- Full-Function Diagnostics: We simulate complex logic, test all serial and Ethernet ports, and verify RAM/Flash integrity to ensure deterministic execution speeds.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

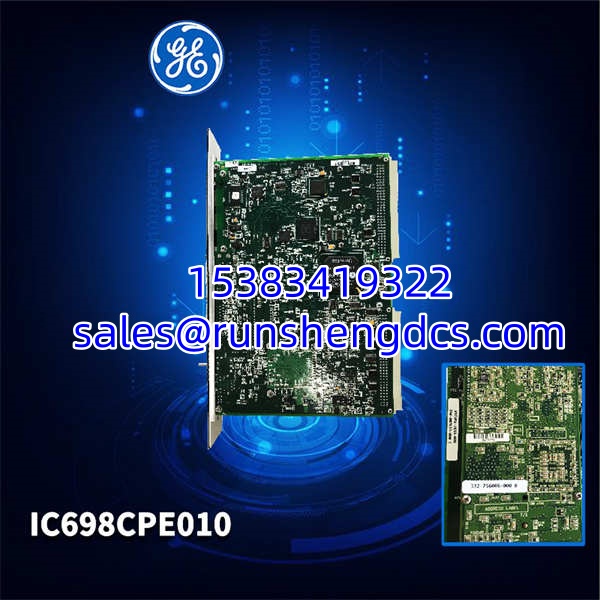

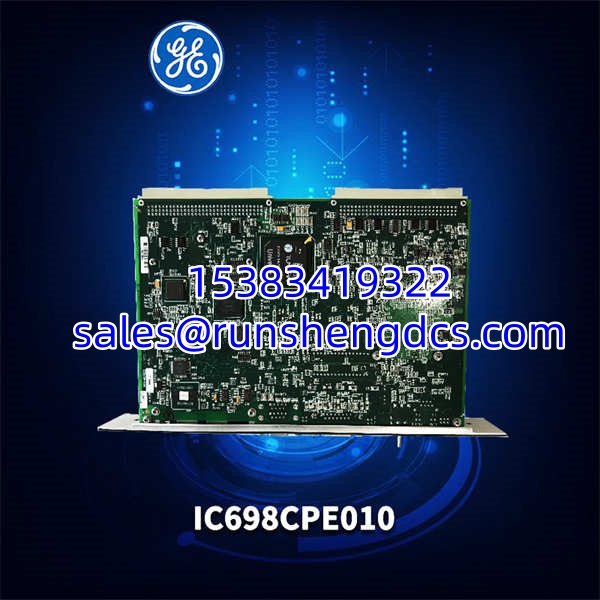

GE IC698CPE010
Compatibility & Migration Paths
To ensure this GE IC698CPE010 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that can lead to communication failures or process faults.
- Firmware/Hardware Revisions: You must confirm your existing Proficy Machine Edition software version is 4.0 or higher. Older software will not support this CPU’s firmware.
- Required Components: This CPU must be installed in Slot 1 of an RX7i rack. Verify your power supply provides at least 3.2A at 5VDC to support this module’s backplane current draw.
- Replacement & Alternatives: The IC698CPE010 is the base model. If your application requires higher performance or more memory, you may need to evaluate the IC698CPE020 or IC698CPE030 as alternatives.
- Get Expert Help: Unsure about your RX7i system configuration? Contact our technical team today for a free compatibility check.
