Description
Key Technical Specifications
- System Platform: GE AC2000 Drive & Exciter
- Logic Voltage: 24V DC
- Board Architecture: Triple-redundant section design
- Components: Transformer, vertical pin headers, parallel heat sinks
- Connectors: Internal slots (accessible from bottom side)
- Mounting: Corner drill holes for standard rack chassis
- Revision Code: 006/09 (Surface marked)
- Cross Reference: F31X305NTBANG1-006/09
- Signal Type: Digital control & excitation firing
- Thermal: Dual parallel heat sinks per section
- Adjustments: Multiple jumper switches & trim pots
- Condition: Typically New Surplus or Refurbished
Product Introduction
AC2000 drives don’t die quietly; they take the exciter board with them when a cooling fan fails or humidity creeps into the cabinet. The 531X305NTBANG1 is the brain sitting right under the power stack, handling firing pulses and feedback loops. It’s not a generic PLC card. It’s a custom-wound, triple-section PCB where each section mirrors the others for redundancy, packed with transformers and heat sinks that run hot. If you’re staring at a blank HMI or erratic motor speed, this board is usually the prime suspect.
Why hunt for this specific revision? The -006/09 suffix matters. GE tweaked the firing logic and jumper maps between revs. Slap in a -006/08 without checking the schematic, and you’ll chase ghost faults for a week. These boards are out of production, so you’re buying from surplus stock. Test it on a bench with a variac and scope before racking it. A 1,000 board that doesn’t fire the SCRs correctly will cost you 50,000 in downtime. Honestly, verify the surface code matches your old board exactly.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| No Firing Pulses | 24V Logic Loss | 90% | Measure J1/J2 for 24V DC | Check external PSU or rack backplane fuse. |
| Erratic Speed | Bad Jumper Setting | 75% | Compare jumpers to old board photo | Reseat jumpers; clean contacts with DeoxIT. |
| Overtemp Fault | Heat Sink Delam | 60% | Visual inspect bottom-side solder joints | Resolder transformer pins; check thermal paste. |
| Intermittent Fault | Oxidized Edge Conn | 85% | Pull board, inspect gold fingers | Clean with IPA + fiberglass pen; reseat firmly. |
| HMI Comm Fail | Backplane Pin Damage | 40% | Inspect connector for bent pins | Straighten pins; verify backplane continuity. |

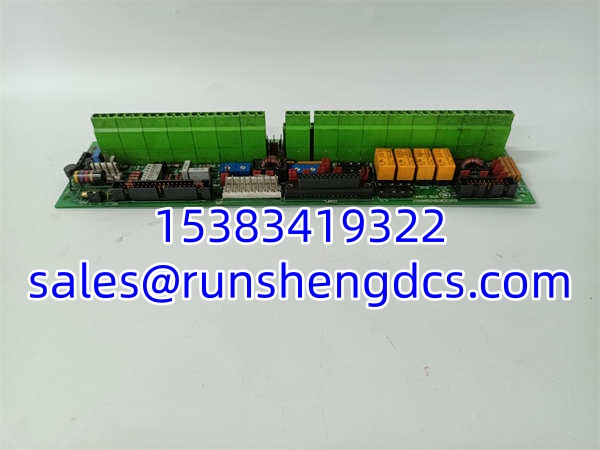

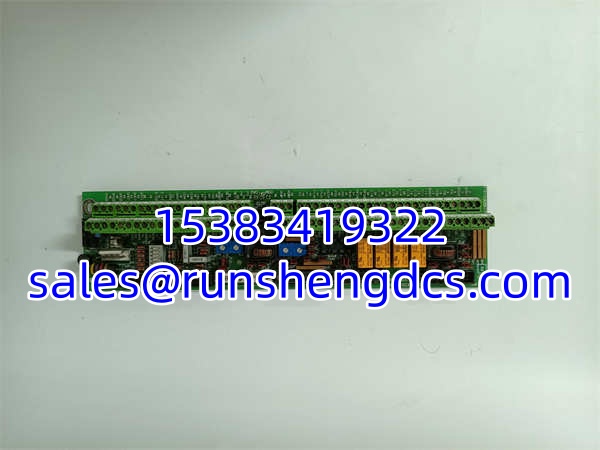

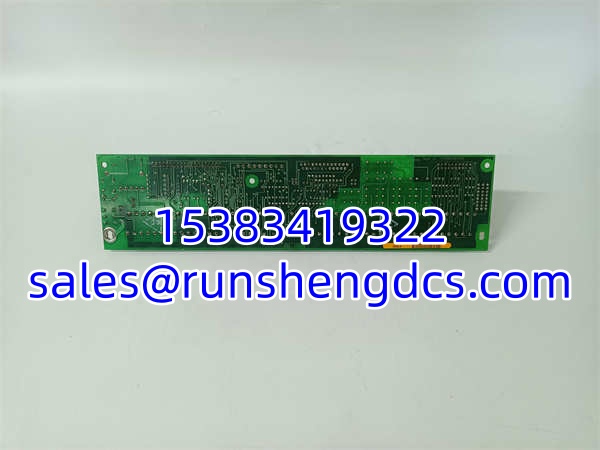

GE 531X305NTBANG1 F31X305NTBANG1
Application Scenarios & Pain Points
- Paper Mill Dryer Section: High ambient heat + paper dust. Standard conformal coating fails. These boards cook. You need the dual heat sink version (NTBANG1), not the lighter-duty NTBAHG1.
- Steel Rolling Mill Main Drive: Massive current transients during bite. Weak solder joints on the firing transformer crack. Vibration kills these boards in 18 months. Inspect solder joints annually.
- Marine Propulsion Exciter: Salt air corrosion on edge connectors. One bad pin = lost phase. Conformal coating is mandatory; verify it’s intact before install.
Compatible Replacement Models
- ✅ Drop-in Replacement: 531X305NTBANG1-006/09. Exact match. Same jumper map, same firmware. Cross-ref F31X305NTBANG1-006/09 is identical. Cost: ~1,000–1,500 surplus.
- ⚠️ Software Compatible: 531X305NTBAPG1. Same family, different rev. Requires jumper reconfiguration and possible parameter download. Labor: 2-4 hours + commissioning. Verify -006/09 vs -006/10 compatibility with GE support first.
- ❌ Hardware Incompatible: 531X304IBDASG1. Different board size, different connector pinout. Do not attempt to adapt. Requires new backplane and cabling. Total cost >$10k.
