Description
Key Technical Specifications
- Product Model: FBM232 P0926GW
- Manufacturer: Foxboro
- Product Type: Field Device System Integrator (FDSI) Module
- Network Speed: 10 Mbps or 100 Mbps Copper Ethernet
- Device Capacity: Up to 64 external field devices per port
- Data Connections: Up to 2000 Distributed Control Interface (DCI) blocks
- Physical Interface: RJ-45 connector (requires external hub or switch)
- Data Types Supported: Analog I/O, Single Digital I/O, Packed Digital I/O
- Scan Rate: Control station access frequency as fast as 500 ms
- Environmental Rating: G3 Class (Harsh industrial environment)
- Software: Dynamic I/O driver download from protocol library
- Ordering Code: P0926GW
Product Introduction
Integrating third-party smart field devices into a legacy DCS usually means fighting protocol mismatches. The FOXBORO FBM232 P0926GW solves this by acting as a universal translator within the I/A Series architecture. This Field Device System Integrator (FDSI) module provides a single 10/100 Mbps Ethernet port that bridges the gap between the Foxboro DCS control database and external field equipment. By dynamically downloading specific I/O software drivers, the FOXBORO FBM232 P0926GW adapts to the exact communication protocol of your connected devices without requiring custom hardware.
Why does this specific module remain critical for plant upgrades? It supports massive data density, handling up to 64 devices and translating them into up to 2000 DCI blocks for the host controller. Whether you are reading analog values or packed digital I/O, the FOXBORO FBM232 P0926GW executes this data conversion at scan rates as fast as 500 ms. Bottom line—this is a discontinued but highly capable workhorse. Verifying your specific third-party device protocol compatibility before purchasing is mandatory to avoid integration headaches.
Troubleshooting Quick Reference
- No Network Link / LED Off: Physical layer issue. Check the RJ-45 cable and verify the external Ethernet switch/hub is powered and configured for 10/100 Mbps auto-negotiation.
- Devices Not Polling / Comm Fault: Missing or corrupt driver. Verify the correct I/O software driver was successfully downloaded to the FOXBORO FBM232 P0926GW via the FDSI configurator.
- Intermittent Data Drops: Network congestion or bad cabling. Ensure you are using a dedicated industrial switch rather than a standard office hub, as the module supports up to 64 devices.
- DCI Block Errors: Configuration mismatch. Cross-reference the XML port and device configuration files against the actual IP addresses and register maps of the field devices.
- Module Fault LED On: Backplane communication failure. Reseat the module on the 2 Mbps redundant module fieldbus backplane to ensure proper connection to the FCP270/FCP280 processor.
Application Scenarios & Pain Points
- Brownfield Plant Upgrades: Integrating modern smart transmitters into aging Foxboro I/A Series systems. The FOXBORO FBM232 P0926GW allows plants to retain their existing DCS while upgrading to HART or Modbus TCP field devices, avoiding a massive rip-and-replace capital expense.
- Skid-Mounted Equipment Integration: Packaging third-party compressor or pump skids. Engineers use this module to poll the skid’s internal PLC over Ethernet, translating the data seamlessly into the main plant DCS database.
- Remote I/O Consolidation: Extending control to remote wellheads or valve manifolds. By daisy-chaining up to 64 devices through an external switch, the minimizes the amount of copper cabling required back to the main control room.

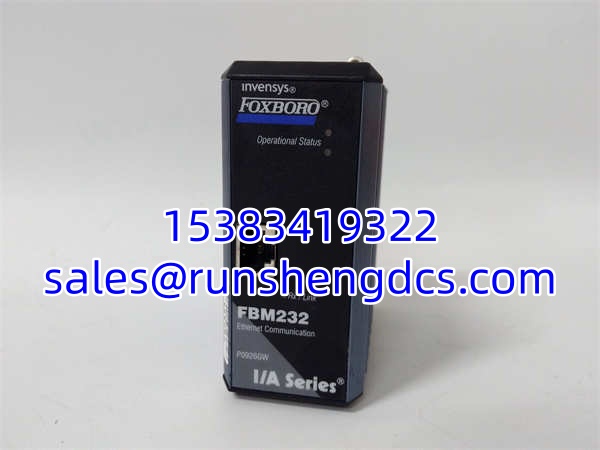

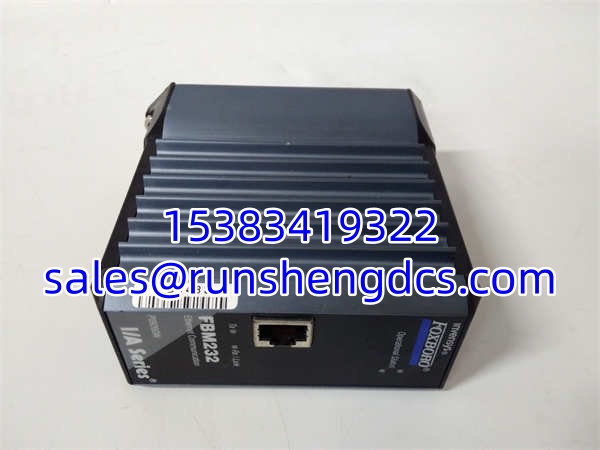

FOXBORO FBM232 P0926GW
Compatible Replacement Models
- ✅ Drop-in Replacement: (Exact match. Ensure the suffix is identical, as Foxboro released multiple hardware revisions for this module. Verify the loaded driver matches your third-party device).
- ⚠️ Software Compatible: FBM233 P0926GX (The redundant Ethernet version of this module. Mechanically identical footprint, but features dual RJ-45 ports for network redundancy. Requires updating the FDSI configuration to account for dual-path routing).
- ❌ Hardware Incompatible: FBM222 P0926TL (PROFIBUS-DP/PA communication module. Completely different protocol, pinout, and backplane signaling. Cannot be used as a substitute for Ethernet-based field device integration).
