Description
Key Technical Specifications
- Product Model: FBM216b P0927AJ
- Manufacturer: Foxboro
- System Platform: I/A Series DCS
- Input Signal: 4-20mA Analog + HART FSK Digital
- Channel Count: 8 Channels (Individually Isolated)
- Operating Voltage: 12.5 to 42 VDC
- Data Capacity: 16MB
- Isolation: Channel-to-Channel, Channel-to-Ground
- Operating Temp: 0°C to 60°C
- Mounting: Control Room / FBM Rack
- Weight: 0.35 kg
- Certifications: UL Listed
Product Introduction
Process plants don’t stop for I/O failures. The FOXBORO FBM216b P0927AJ exists to make sure they don’t have to. It’s an 8-channel redundant input module for the I/A Series DCS, specifically designed to grab 4-20mA analog signals and overlay HART digital data without missing a beat. Bottom line—when your primary FBM takes a hit, this module pairs up to keep the data flowing.
You need this exact board because it handles dual-channel isolation and dedicated FSK modems for every single input. That means 8 separate lanes for HART communication, not a shared bus that bottlenecks under load. Honestly, finding clean, tested FBM216b modules is getting harder as I/A Series hardware ages. This unit has been bench-tested to verify channel isolation and HART handshake integrity. It’s not new, but it will hold your redundancy pair together exactly as designed.
Troubleshooting Quick Reference
- Fault: Redundancy Loss / Pair Mismatch
- Cause: 70% chance it’s a failed HART modem or isolation barrier on one channel.
- Quick Check: Run I/A Series diagnostics on the FBM pair. Check for “HART Comm Fail” alarms.
- Fix: Swap the suspected channel to a known good slot. If the fault follows the module, replace the FBM216b P0927AJ.
- Fault: Noisy / Drifting 4-20mA Readings
- Cause: Degraded ADC or compromised channel isolation.
- Quick Check: Inject a precision 12mA signal. Compare against a calibrated reference.
- Fix: If drift exceeds ±0.1%, the analog frontend is toast. Do not attempt field calibration. Replace.
- Fault: Module Fails to Power Up
- Cause: Blown internal protection or backplane connector damage.
- Quick Check: Measure 12.5-42VDC at the backplane pins. Inspect connector for bent pins.
- Fix: Reseat the module firmly. If no power, check the FBM base plate power supply.
Application Scenarios & Pain Points
- Redundant Field Instrumentation: Critical control loops where a single I/O failure means a unit trip. The FBM216b P0927AJ pairs with a primary module to provide zero-bumpless switchover.
- HART Device Management: Plants running smart transmitters that need both analog control AND digital diagnostics. Dedicated FSK modems per channel prevent polling collisions.
- Legacy I/A Series Life Extension: Keeping 20+ year old DCS systems running when OEM lead times hit 30+ weeks.

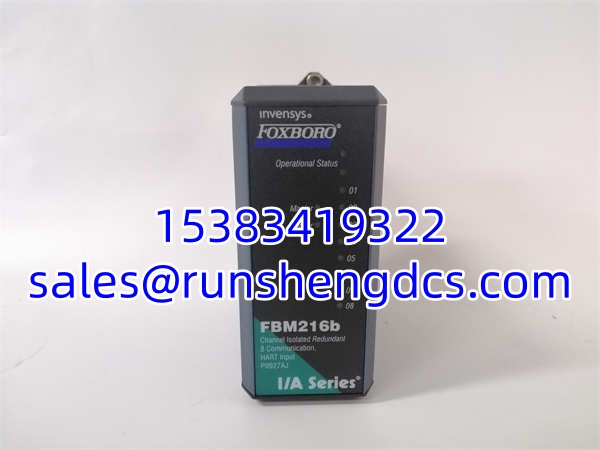

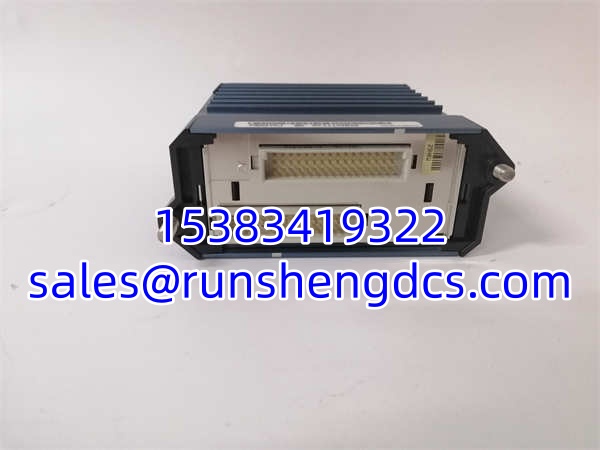

FOXBORO FBM216b P0927AJ
Compatible Replacement Models
- ✅ Drop-in Replacement: FBM216 P0927AJ (without the ‘b’). The original non-b variant is functionally identical in most I/A Series configurations. Verify your redundancy firmware version supports the base model before swapping.
- ⚠️ Software Compatible: . Later revision with minor internal component changes. It requires zero configuration changes in the I/A Series database, but always validate HART polling timing after installation.
- ❌ Hardware Incompatible: FBM217 P0922VW. This is a different channel count / signal type module. Completely different backplane pinout. Do not attempt to force this into the same FBM slot.
