Description
Key Technical Specifications
- Model Number: 9200-06-01-10-00
- Manufacturer: Bently Nevada. Series: Seismoprobe Velocity Transducer System
- Sensor Type: Two-Wire, Moving Coil Velocity Transducer
- Cable Length: 10 Feet (3.05 Meters) Integral Hardline Cable
- Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz
- Frequency Response: 4.5 Hz to 1 kHz (270 cpm to 60,000 cpm)
- Operating Temp: -29°C to +121°C (-20°F to +250°F)
- Power Requirement: None (Self-generating, no external power needed)
- Measurement Type: Absolute Vibration (Relative to Free Space)
- Environmental Protection: Excellent corrosion resistance without additional housing
Functional Role & Application Analysis
The 9200-06-01-10-00 serves as a foundational vibration sensor within the Bently Nevada machinery protection ecosystem. It solves the specific engineering challenge of measuring absolute casing, bearing housing, and structural vibration without requiring external power. By utilizing a moving coil design, this 9200-06-01-10-00 transducer provides a direct, proportional voltage output based on vibration velocity. This architecture inherently reduces sensitivity to shock and pulse excitation, making it highly reliable for continuous monitoring and periodic diagnostic measurements.
Engineers specify the 9200-06-01-10-00 when they need a rugged, self-contained sensor for harsh industrial environments. The 10-foot integral hardline cable eliminates the need for separate extension cables and reduces potential connection points that could fail. The sensor’s exceptional resistance to corrosive environments means it can be installed directly on machinery without requiring extra protective housings. It acts as the primary physical interface for translating mechanical vibration into actionable electrical data.
Typical use cases include:
- Rotating Equipment Monitoring: Deployed on centrifugal air compressors, fans, and blowers to continuously monitor bearing housing vibration and detect early mechanical degradation.
- Motor and Pump Protection: Integrated into 1900/65A or 3500/42 monitoring systems to provide absolute vibration data for critical water pumps and electric motors.
- Portable Diagnostics: Used with temporary magnetic mounts for periodic route-based data collection and troubleshooting on auxiliary machinery.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable vibration sensor is far greater than its purchase price. A failed transducer can mask a developing mechanical fault, leading to catastrophic equipment failure. We have established a rigorous, multi-stage testing process to ensure every 9200-06-01-10-00 we ship is 100% functional and meets original Bently Nevada specifications.
- Visual & Component Inspection: Every unit undergoes professional cleaning and visual inspection. We verify the integrity of the 10ft integral cable, check the connector for damage, and confirm the sensor housing shows no signs of corrosion or physical impact.
- Live System Test: The transducer is connected to a calibrated shaker table and a Bently Nevada monitor. We verify continuous signal output and confirm stable communication with the monitoring system.
- Full-Function Diagnostics: We apply controlled vibration at 100 Hz (6,000 cpm) and measure the output voltage. We verify the sensitivity falls within the 20 mV/mm/s ±5% specification and validate the frequency response curve.
- Cable Continuity Test: We perform a full continuity and insulation resistance test on the 10ft hardline cable to ensure no internal wire breaks or shielding degradation.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty and lifetime technical support.

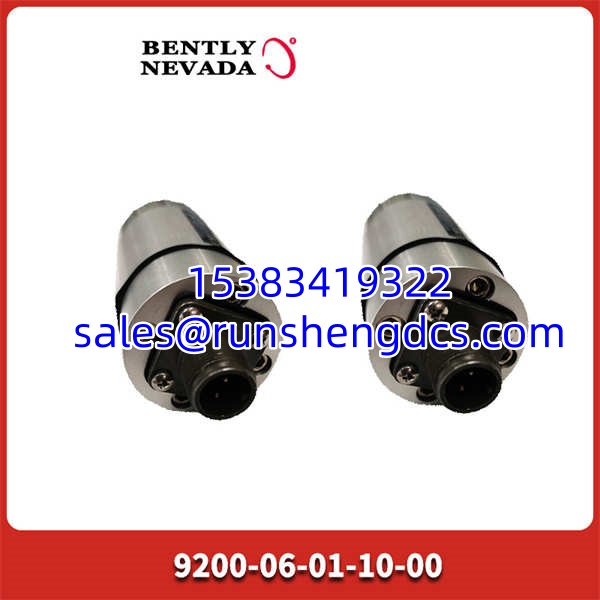

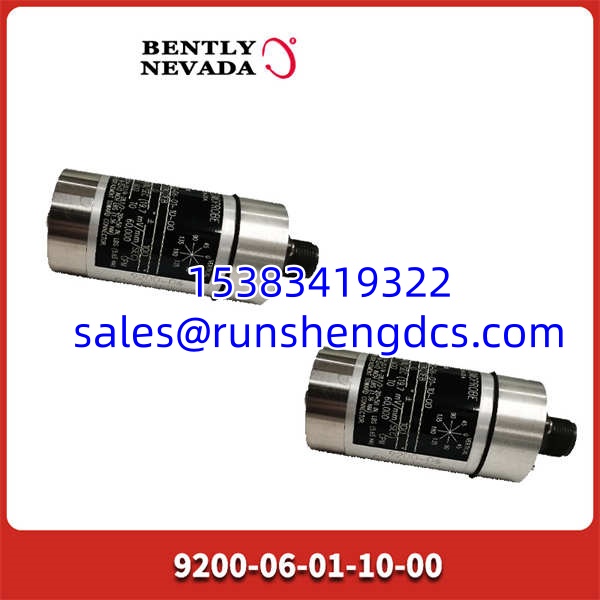

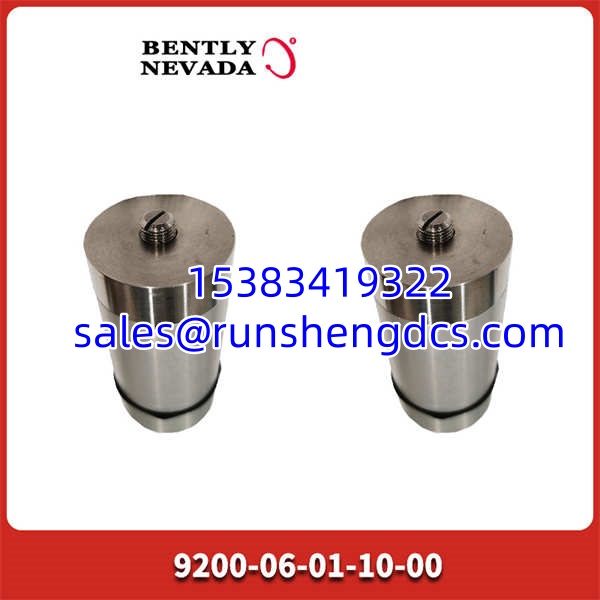

Bently Nevada 9200-06-01-10-00
Compatibility & Migration Paths
To ensure this 9200-06-01-10-00 is 100% compatible with your monitoring system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to installation delays.
- Monitor Compatibility: Confirm your monitoring system supports two-wire velocity transducers. Compatible systems include the Bently Nevada 1900/65A, 2300/20, and 3500/42 modules. Older systems may require a VDC converter.
- Cable Length Verification: The “-10-00” in the model number indicates a 10-foot integral cable. Verify this length is sufficient for your installation. Custom lengths between 7 and 50 feet are available through special order.
- Replacement & Alternatives: The 9200-06-01-10-00 is a standard Seismoprobe. If you require a high-temperature version, the 74712 series is compatible with the same monitoring hardware and supports temperatures up to +204°C.
- Get Expert Help: Unsure about your monitoring system compatibility or cable requirements? Contact our technical team today for a free compatibility check and application assessment.
