Description
Key Technical Specifications
- Product Model: 330103-00-06-10-02-00
- Manufacturer: Bently Nevada
- Sensor Type: 8mm Eddy Current Probe
- Thread Size: M10 x 1 (Metric)
- Cable Length: 10 feet (approx. 3.0 meters)
- Connector Type: ClickLoc镀金铜接头 (Probe end) to BNC (Preamplifier end)
- System Compatibility: 3300 XL 8mm Preamplifier (e.g., 330180 series)
- Operating Temp: -52°C to +177°C (Probe end)
- Cable Armor: Non-armored (Standard)
- Application: Radial Vibration, Axial Displacement, Shaft Position
Product Introduction

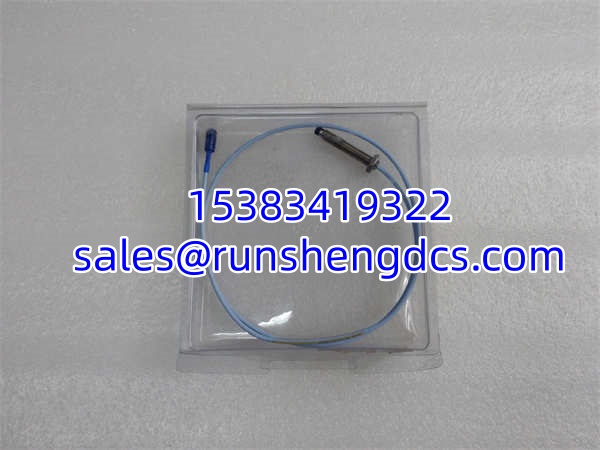

When a $5 million steam turbine starts vibrating like a washing machine, the last thing you want to do is guess which sensor is lying to you. The Bently Nevada 330103-00-06-10-02-00 is an 8mm eddy current probe that acts as the eyes and ears of your machinery protection system. It sits millimeters away from the spinning shaft, using electromagnetic fields to measure exact gap distances without ever touching the metal.
I’ve installed hundreds of these on compressors and fans, and the 10-foot cable length on this specific part number is a lifesaver for getting from the bearing housing to the junction box without needing messy extension cables. The ClickLoc connector on the probe end is gold-plated, which is great for fighting off corrosion in humid pump houses. Just remember, this is a non-armored version. If you’re running it through a high-vibration area where a wrench might drop on it, you might want to look at the armored variants.
Quality SOP & Tech Pitfalls (The Reality Check)
The Lab Report (SOP)
Eddy current probes are precision instruments, not just wires. Before shipping, we inspect the probe tip under magnification to ensure the PEEK face is completely free of scratches or oil residue. We then run an impedance test using a calibrated Bently Nevada TK-3E or similar calibrator to verify the 75Ω characteristic impedance and linear range. Finally, we pack it in anti-static foam with a printed test report.
The Engineer’s Warning (Pitfalls)
Never, ever use a standard multimeter to check if this probe is “alive.” You will fry the internal electronics. I’ve seen guys try to test continuity on the ClickLoc connector and instantly ruin a perfectly good sensor. Also, when threading the M10x1 probe into the housing, use a torque wrench set to 5-7 Nm. Over-tightening will crack the internal coil assembly, and you won’t know it’s broken until the machine trips at 3 AM.
Installation & Configuration Guide
- Pre-Installation: ⚠️ CRITICAL: Ensure the machine is locked out and the shaft is stationary. Clean the threaded mounting hole with compressed air. Verify the 330180 preamplifier is powered down before connecting the BNC end.
- Removal: Disconnect the BNC connector at the preamplifier. Use a proper spanner wrench to unscrew the old probe from the M10x1 housing. Inspect the housing threads for cross-threading or debris.
- Installation: Apply a drop of thread-locking compound if specified by OEM. Hand-thread the new 330103-00-06-10-02-00 probe, then torque to 5-7 Nm. Do not bend the cable tighter than a 50mm radius at the base of the probe. Connect the BNC end to the preamplifier.
- Power-On & Testing: Power up the preamplifier. Use a System 1 software or voltmeter to check the DC gap voltage. Adjust the probe in/out until you hit the target gap voltage (typically around -9V to -11V DC for a 1.27mm mechanical gap). Lock the jam nut securely.

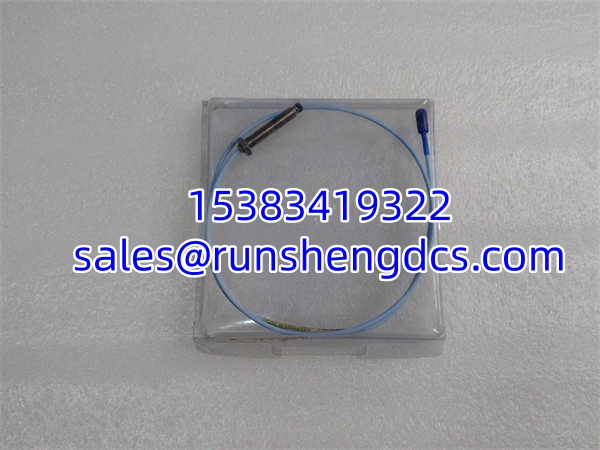

Bently Nevada 330103-00-06-10-02-00
Compatible Replacement Models
| Replacement Model | Compatibility Tier | Field Notes |
|---|---|---|
| 330103-00-06-10-02-00 | ✅ Drop-in Replacement | Exact same model. Direct swap. |
| 330103-00-06-10-12-00 | ⚠️ Software Compatible | FluidLoc cable variant. Requires verifying preamplifier compatibility with FluidLoc technology. |
| 330104-00-06-10-02-00 | ❌ Hardware Mod Required | This is an ARMORED probe. It will physically fit, but the added mass/stiffness may require recalibration. |
Frequently Asked Questions (FAQ)
Can I use an extension cable to make this 10ft probe longer?
No. The 3300 XL system is calibrated as a complete loop (Probe + Extension Cable + Preamplifier). Adding an extension cable changes the impedance and will throw off your vibration readings. Buy the correct length probe.
What does the “02” in the part number mean?
The “-02” indicates the probe end uses the miniature ClickLoc connector with a standard cable. If it were “-00”, it would have no connector and bare wires.
Is this probe safe for high-temperature environments?
The probe end can handle up to +177°C. However, if your bearing housing regularly exceeds this, you need to look at the Extended Temperature Range (ETR) probes. Standard PEEK tips will melt and fail.
How do I know if this probe is bad?
If your preamplifier LED is flashing red or the System 1 software shows a “Sensor Fault,” and you’ve verified the preamp and cable are good, the probe is likely shorted or open. You can also check the DC gap voltage; if it’s pegged at -24V or 0V regardless of adjustment, the probe is toast.
Does this come with the jam nut and lockwasher?
Yes, OEM Bently Nevada probes ship with the necessary M10x1 mounting hardware. Always use a new lockwasher during installation to prevent vibration-induced loosening.
How long is the warranty?
We provide a 1-year warranty. If the probe fails due to manufacturing defects under normal operating conditions, we replace it. Physical damage from over-torquing or chemical exposure is not covered.
