Description
Key Technical Specifications
- Module Type: 3500/45 Position I/O Module
- Terminal Type: Internal (Direct wire-to-board)
- Channel Capacity: 4 Independent Channels
- Supported Sensors: Proximitor, DC LVDT, RPT, AC LVDT
- Measurement Functions: Axial Position, Differential Expansion, Eccentricity
- Operating Voltage: 24V DC (Backplane Powered)
- Operating Temp: -30°C to +65°C
- Dimensions: 241 mm (H) x 24.4 mm (W) x 99.1 mm (D)
- Weight: 0.44 kg (0.96 lbs)
- Configuration: Requires 3500/05 Frame Configuration Software
- Alarm Logic: Programmable Setpoints with Delays
- Origin: USA
Product Introduction

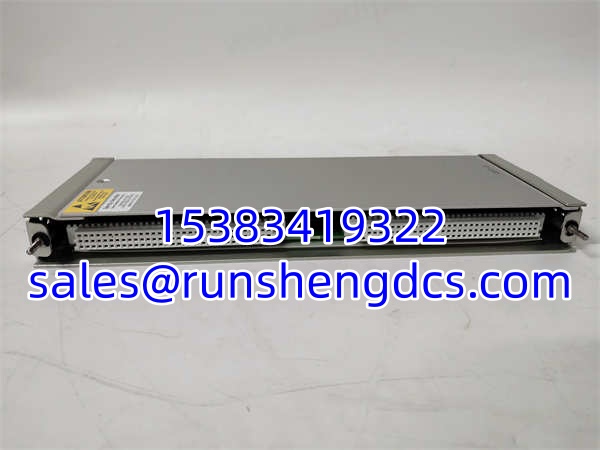

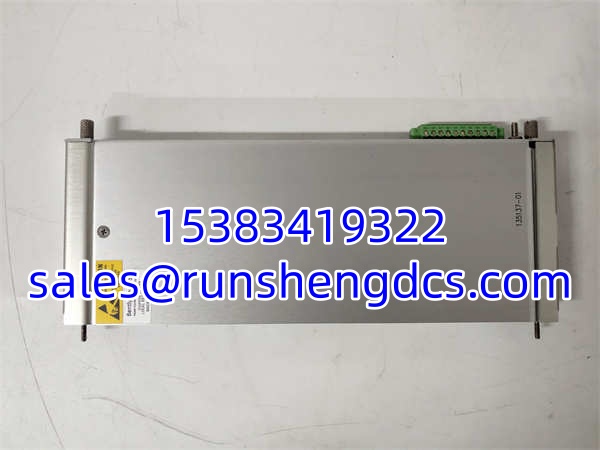

Turbine axial shift alarms are screaming, but the operator can’t tell if it’s a real thrust bearing failure or a loose wire. The 135137-01 is the Position I/O module sitting in your 3500 rack, specifically designed to handle the slow-moving, high-stakes signals of axial position and differential expansion. Unlike vibration cards that chase high-frequency noise, this module focuses on DC and low-frequency displacement, converting raw sensor signals into critical mechanical health data.
This specific “-01” variant features internal terminals, meaning field wires connect directly to the module’s edge connector without an external terminal board. It supports four channels, typically configured as two pairs for redundant axial position or differential expansion monitoring. Honestly, if you’re seeing erratic position readings or bypass faults, check the internal terminal screws first—vibration from the turbine deck can loosen them over time, causing intermittent opens that look like sensor failures.
Troubleshooting Quick Reference
- Channel Bypass / Fault LED | Loose Internal Terminal | High (70%) | Power down; retorque internal terminal screws | Vibration loosens connections; verify wire seating
- Erratic Axial Position | Ground Loop / Noise | High (60%) | Check shield grounding at sensor only | Single-point ground; separate from VFD/power cables
- No Signal / Dead Channel | Sensor Open / Short | Medium (50%) | Measure sensor resistance at module terminals | Verify DC LVDT/Proximitor continuity; check extension cable
- False Danger Alarms | Config/Setpoint Drift | Medium (40%) | Connect via 3500/05 software | Verify alarm setpoints and delay timers; check for config corruption
- Module Not Communicating | Backplane Bus Fault | Low (20%) | Check adjacent modules for bus errors | Reseat module; clean backplane edge fingers; verify power supply

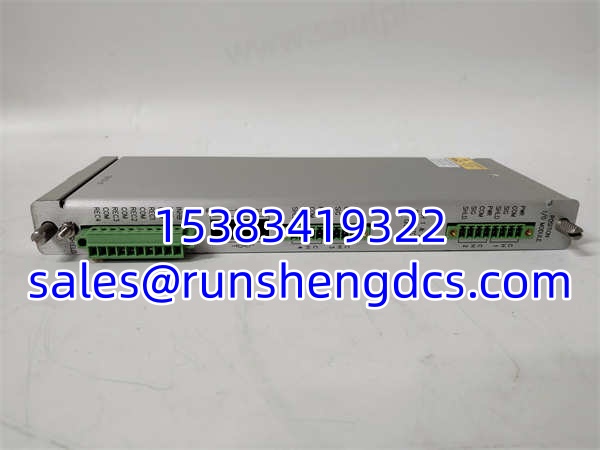

BENTLY 135137-01
Application Scenarios & Pain Points
- Steam Turbine Axial Position: Thrust bearing wear requires precise DC measurement. The 135137-01 handles low-frequency signals without the noise susceptibility of standard vibration cards, preventing false trips during load changes.
- Differential Expansion Monitoring: Rotor vs. casing growth rates must be tracked accurately. Four-channel support allows redundant monitoring, ensuring safety even if one sensor fails during startup.
- Eccentricity Tracking: Rotor bow detection during coastdown. The module’s DC coupling captures slow mechanical shifts that AC-coupled vibration monitors miss entirely.
Compatible Replacement Models
- ✅ Drop-in Replacement: 135137-01 (Exact match. Internal terminal variant. No config change if using same sensor type.)
- ⚠️ Hardware Variant: 135145-01 (External terminal variant. Requires external terminal board. NOT interchangeable without rewiring.)
- ❌ Hardware Incompatible: 125680-01 (3500/40M Proximitor I/O. Different function, pinout, and configuration. Do not attempt to install.)
