Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 125768-01 |
| Associated Module | 3500/20 Rack Interface Module |
| Primary Function | Local display interface for 3500 system data |
| Display Type | VGA display with touchscreen operation |
| Display Count | Up to two displays per 3500 rack depending on configuration |
| Power Consumption | Approximately 5.6 W for the -01 display unit variant; combined display + interface module may draw up to 15.5 W |
| Mounting Options | Face-mount, 19-inch EIA rack-mount, panel-mount, or standalone |
| System Compatibility | Bently Nevada 3500/05 instrumentation rack with 3500/20 interface module |
| Data Limitation | 125768-01 is a base part number; the exact firmware, display revision, and cable/interface compatibility must be verified from the label or OEM documentation. |
Product Introduction
Bently Nevada 125768-01 is the display unit associated with the 3500/20 Rack Interface Module in the Bently Nevada 3500 Machinery Protection System. It is not a vibration monitor, relay module, power supply, communication gateway, or analog I/O card. Its role is to provide a local operator interface — typically a VGA touchscreen display — so that plant personnel can view real-time machinery data, alarm status, and system configuration directly at the 3500 rack or at a remote panel location.
The 3500/20 display unit supports touchscreen operation for parameter configuration, data queries, and alarm acknowledgment. Each 3500 rack can typically support up to two displays, depending on the installed configuration. The display unit connects to the 3500/20 interface module, which handles the rack-level communication and display coordination.
Because 125768-01 is a base part number, the exact firmware version, display revision, and cable/interface compatibility should always be confirmed from the physical label or the original system BOM. Some surplus listings incorrectly describe this part as an analog input module, RIM I/O module, or 4-channel displacement monitor — those descriptions are not accurate for the 3500/20 display unit.

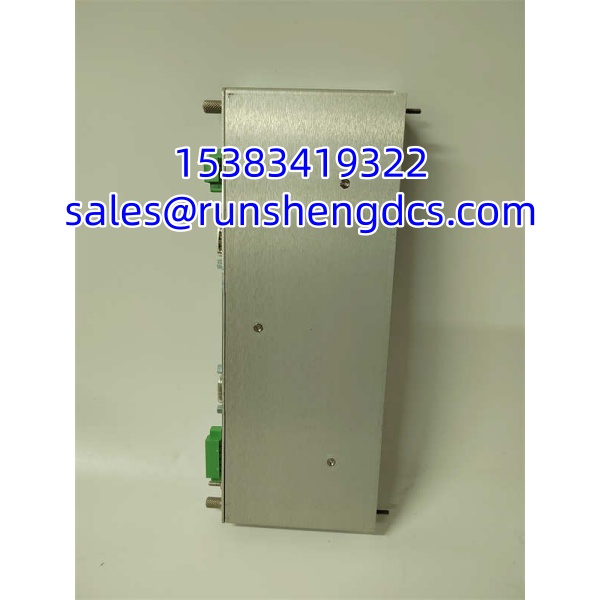

BENTLY 125768-01
QA/QC Transparency SOP
- Intake & Label Verification — Photograph the full rating label, part number, revision, and serial number. Confirm the unit is a 3500/20 display unit, not a monitor or communication card.
- Visual Inspection — Check the display screen, touchscreen surface, connector cables, mounting brackets, and rear interface for cracks, corrosion, or mechanical damage.
- Functional Testing — Verify display output, touchscreen response, and communication with the installed 3500/20 interface module. Confirm firmware compatibility with the rack.
- System Compatibility Check — Confirm the installed 3500/20 module type, cable interface, and display configuration. Verify whether the rack supports one or two displays.
- Final QC & Packaging — Tag with test results, firmware/revision, and source condition. Pack with screen protection and ESD-safe materials.
Field Engineer Gotchas
- Do not confuse 125768-01 with a monitor or I/O module. It is a display unit for the 3500/20 interface. Listings describing it as an analog input, RIM I/O, or 4-channel displacement monitor are incorrect.
- Firmware compatibility matters. A replacement display unit may need matching firmware to communicate properly with the installed 3500/20 module.
- The 3500/20 interface module must be present. The display unit alone cannot operate without the 3500/20 rack interface module installed in the 3500/05 rack.
- Cable and interface type must match. The display connects to the 3500/20 module via a specific cable/interface. Verify the connector type and cable length before installation.
- Power budget depends on configuration. The -01 display unit draws approximately 5.6 W, but combined display + interface configurations may draw up to 15.5 W. Ensure the 3500/15 power supply can support the load.

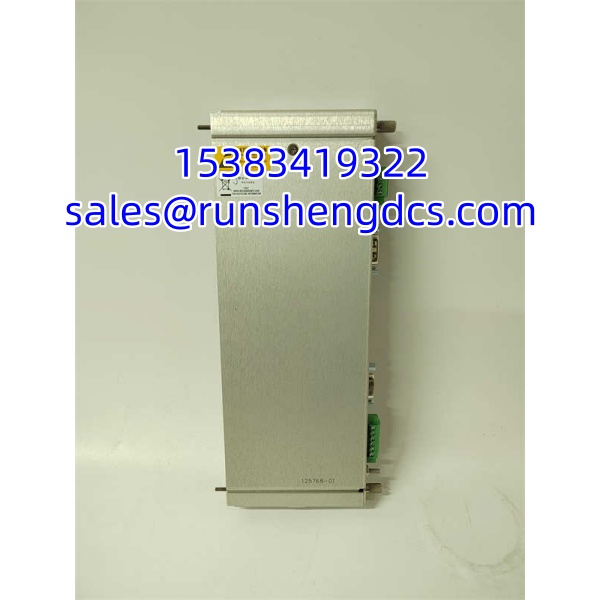

BENTLY 125768-01
Application Scenarios
- 3500 rack display restoration. Replace a failed 125768-01 display unit to restore local touchscreen operation at the machinery protection panel.
- Remote display installation. Add a 3500/20 display unit at a remote operator station for local monitoring of turbine, compressor, or generator protection data.
- Spare pool qualification. Verify whether existing 125768-01 stock matches the installed 3500/20 module firmware and display configuration.
- Operator interface upgrade. Replace an older or damaged display unit to improve visibility, touchscreen response, and alarm acknowledgment capability.
FAQ
1. What does 125768-01 do?
It is the display unit for the Bently Nevada 3500/20 Rack Interface Module. It provides a local VGA touchscreen display for viewing 3500 system data, alarms, and configuration.
2. Is 125768-01 a vibration monitor or analog input module?
No. It is a display unit. Listings describing it as an analog input, RIM I/O, or 4-channel displacement monitor are incorrect for this part number.
3. Can I use any 3500/20 display as a replacement?
Not safely. The firmware version, revision, and cable interface must match the installed 3500/20 module and rack configuration.
4. How many displays can one rack support?
Typically up to two displays per 3500 rack, depending on the installed configuration.
5. Does the display unit work without the 3500/20 module?
No. The 125768-01 display unit requires the 3500/20 Rack Interface Module installed in the 3500/05 rack to function.
6. How do I confirm the exact specification?
Check the physical label for the part number, revision, and serial number. Match it against the installed 3500/20 module and rack BOM.
