Description
Key Technical Specifications
• Channel Count: 4 (Configured as two independent pairs)
• Supported Parameters: Radial Vibration, Axial Displacement, Differential Expansion (Diff胀), Eccentricity, REBAM
• Input Sensor Type: Proximitor (Eddy Current)
• Measurement Accuracy: Better than ±1% for displacement
• Frequency Response: 0.5 Hz to 10 kHz
• Power Consumption: < 15 W (Typical < 5 W)
• Operating Temp: -40°C to +65°C (Up to +85°C for some variants)

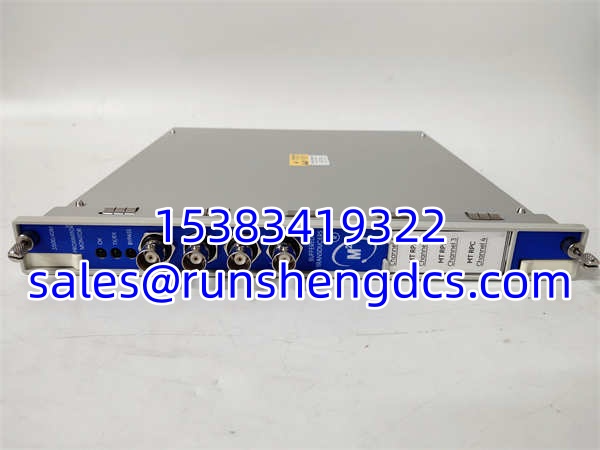

• Front Panel Indicators: OK LED, TX/RX LED, Bypass LED
• Buffered Outputs: Front panel BNC connectors for each channel
• Configuration: Requires 3500 Configuration Software & 3500 Rack Interface Module (RIM)
Product Introduction
If your turbine shaft is rubbing or your thrust bearing is wearing out, the 3500/40M is the first line of defense. This 4-channel Proximitor monitor takes raw eddy current signals and translates them into critical mechanical health data. It doesn’t just measure; it continuously compares real-time shaft position against user-programmable Alert and Danger setpoints to drive hardwired relay trips before catastrophic damage occurs.
Why spec this exact module? It handles the heavy lifting for paired mechanical parameters. Channel 1 and 2 can monitor radial vibration while Channel 3 and 4 handle axial displacement simultaneously. Honestly, the ±1% accuracy and 0.5 Hz to 10 kHz frequency response make it highly reliable for catching both slow-roll eccentricity and high-speed shaft rubs. Bottom line—this is the industry-standard workhorse for shaft dynamics, but remember: you cannot configure all four channels to do the same thing. They operate strictly in pairs.
Troubleshooting Quick Reference
• OK LED Off / Module Fault | Cause: Internal hardware failure or backplane comm loss | Relevancy: 90% | Quick Check: Verify TX/RX LED is blinking | Fix: Reseat module; check 3500 RIM communication
• Erratic Displacement Readings | Cause: Proximitor gap voltage out of range or bad cable | Relevancy: 85% | Quick Check: Measure DC gap voltage at buffered BNC output | Fix: Adjust probe gap to -9V to -10V; check shield grounding
• Nuisance Danger Trips | Cause: Transient startup passing through alert zone too long | Relevancy: 80% | Quick Check: Review alarm delay timers in config software | Fix: Increase startup inhibit time or adjust filter settings
• Bypass LED Lit | Cause: Channel manually bypassed or sensor open/short | Relevancy: 75% | Quick Check: Check sensor fault status in 3500 Config | Fix: Repair field wiring; clear bypass via software
• Cannot Communicate via Modbus | Cause: Missing 3500/92 Gateway or bad register map | Relevancy: 70% | Quick Check: Verify 3500/92 module is installed and configured | Fix: Check Modbus register offsets for 40M channels

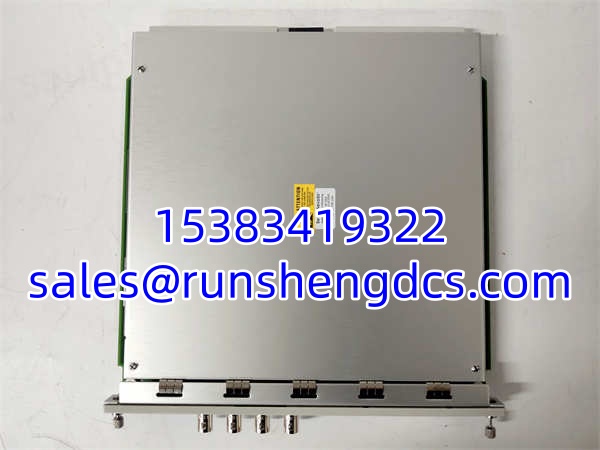

BENTLY 3500/40M
Application Scenarios & Pain Points
• Steam Turbine Generators: Thrust bearing wear causes axial shaft movement. The 3500/40M provides continuous axial displacement monitoring, tripping the unit before the rotor contacts the stator.
• Centrifugal Compressors: Rotor unbalance creates high radial vibration. Paired channels allow simultaneous monitoring of drive-end and non-drive-end bearings to detect misalignment early.
• Large Industrial Pumps: Slow-roll eccentricity damages seals during startup. The module’s low-frequency response (down to 0.5 Hz) accurately captures shaft bow before bringing the machine up to speed.
Compatible Replacement Models
• ✅ Drop-in Replacement: Bently 3500/40M-01-00 (Exact Match). Same footprint, same paired-channel logic, same Modbus map. Surplus pricing ranges 2,500 to 7,500 depending on condition.
• ⚠️ Software Compatible: Bently 3500/42M. Same 4-channel form factor, but adds support for seismic (velocity/acceleration) sensors and absolute vibration. Requires re-downloading rack config. Plan 3-4 hours for re-commissioning.
• ❌ Hardware Incompatible: Bently 1900/65A. Do not attempt. The 1900 series is a standalone general-purpose monitor, NOT a 3500 rack module. Requires complete rewiring, external power supply, and loss of TMR voting capabilities.
