Description
Key Technical Specifications
- Manufacturer: ABB
- Product Type: Feeder Protection and Control Relay
- Protection Functions: Three-phase overcurrent, earth fault, negative sequence
- Control Functions: Circuit breaker control, auto-reclosing
- Measurement Capabilities: Current, voltage, power, frequency
- Communication Protocols: IEC 61850, Modbus TCP, DNP3.0, IEC 60870-5-103
- Current Input Rating: Selectable 1A or 5A
- Voltage Input Rating: Selectable 100-120V or 200-240V
- Auxiliary Power: AC/DC compatible
- Human-Machine Interface: LCD display with function keys
- Diagnostics: Continuous self-monitoring and automatic fault detection
- Installation: Embedded or panel-mounted
Product Introduction
A sudden short circuit on a distribution feeder can wipe out expensive grid assets or trigger a massive blackout. The ABB REF615E-E-HBFAABAANAA4BNA11E-7700080612 acts as the frontline defender for these circuits. Belonging to the Relion® 615 family, this relay continuously monitors current and voltage, ready to issue a trip command in milliseconds when a fault exceeds your set thresholds. It is the critical brain keeping your substation automation running safely.
Why do grid operators trust this specific unit? It handles complex grid faults with advanced features like auto-reclosing, which restores power almost instantly after a transient fault clears. Its real power lies in communication. Supporting the IEC 61850 standard, it integrates flawlessly into modern SCADA systems, allowing operators to view real-time waveforms and event logs remotely. Whether you are running a radial network or a ring main, this relay gives you total visibility and control.

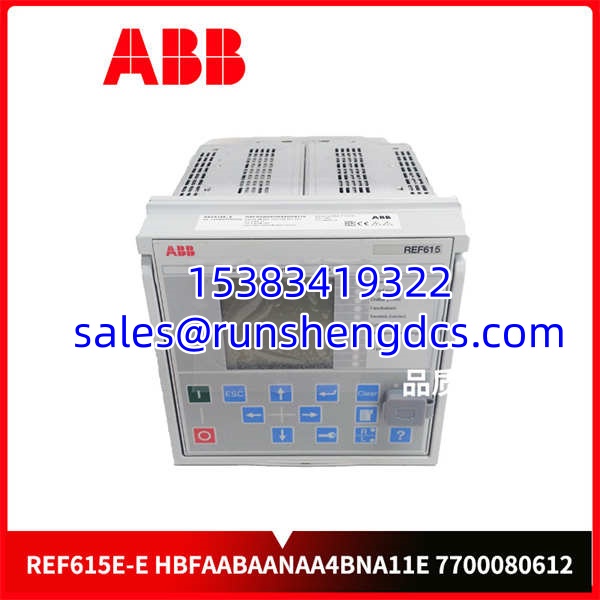

ABB-REF615E-E-HBFAABAANAA4BNA11E-7700080612
Troubleshooting Quick Reference
- Fault: Relay shows “Communication Failure” on the LCD.
- Cause: 80% chance it’s an IP address conflict or a severed Ethernet cable.
- Relevancy: High. Loss of SCADA visibility makes remote operation impossible.
- Quick Check: Ping the relay IP address from the control room PC. Check the physical link LED.
- Fix: Verify subnet mask and gateway settings in the “Configuration > Communication” menu. Reseat the Ethernet cable.
- Fault: Nuisance tripping on Overcurrent Protection.
- Cause: 70% chance the CT ratio (In) or pickup multiplier is misconfigured.
- Relevancy: High. Unplanned outages cost money.
- Quick Check: Check the “Configuration > Analog Ratios” menu. Verify the primary CT ratio matches the physical CTs on the feeder.
- Fix: Recalculate the pickup value. Remember, ABB uses multiples of In. If your CT is 300:5 and you want 600A, set the value to 2.00 x In.
- Fault: Relay is completely dead (no LCD backlight).
- Cause: 90% chance of a missing auxiliary power supply or blown internal fuse.
- Relevancy: Critical. Total loss of protection.
- Quick Check: Measure the auxiliary power terminals with a multimeter.
- Fix: Verify AC/DC supply voltage. If power is present but the relay is dead, the internal power supply board (X100) has likely failed.
Application Scenarios & Pain Points
- Industrial Manufacturing Plants: High inrush currents from large motors can mimic fault conditions. The REF615E-E-HBFAABAANAA4BNA11E-7700080612 requires precise negative-sequence overcurrent tuning to distinguish between a motor starting and a genuine phase loss, preventing unnecessary production halts.
- Utility Substations: Aging infrastructure often suffers from degraded cable insulation, leading to intermittent earth faults. The relay’s high-sensitivity directional earth fault protection must be configured to isolate only the bad section without dropping the entire bus.
- Water Treatment Facility Upgrade: An engineer at a municipal water plant was upgrading their DCS to IEC 61850. They faced massive integration headaches because the legacy relays couldn’t speak the new protocol. By swapping in the REF615E-E-HBFAABAANAA4BNA11E-7700080612, they achieved seamless MMS and GOOSE messaging with the new SCADA server. The built-in web HMI also allowed them to troubleshoot a breaker wiring issue directly from a laptop, saving hours of physical panel checks.

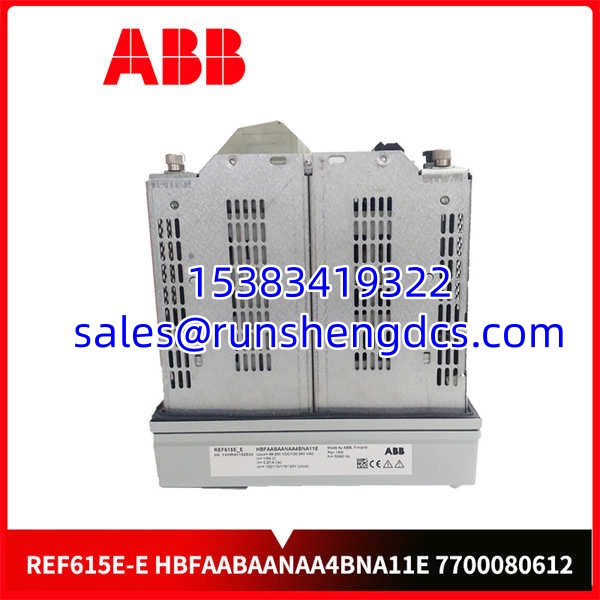

ABB-REF615E-E-HBFAABAANAA4BNA11E-7700080612
Compatible Replacement Models
- ✅ Drop-in Replacement: REF615E-E-HBFAABAANAA4BNA11E-7700080612 (Exact Match). Always match the full order code. The “HBFAABAANAA4BNA11E” string dictates the exact hardware options, CT ratings, and pre-loaded firmware.
- ⚠️ Software Compatible: REF615E-E-HBFAABAANAA4BNA11E-7700080612 (Newer Rev). If you receive a unit with a newer hardware revision, it will fit the panel and use the same IED Scout configuration tool. Expect to spend 30 minutes verifying the CID file and updating the firmware.
- ❌ Hardware Incompatible: REV615. Do not confuse these. The REV615 is specifically designed for capacitor bank protection. Its internal algorithms are tuned for reactive power and unbalance, not general feeder overcurrent. It will not protect a standard distribution line.
