Description
Key Technical Specifications
- Product Family: ABB Relion® 615 Series
- Primary Application: Dedicated Feeder Protection and Control
- Operating Voltage: 48-250 VDC / 100-240 VAC (50/60 Hz)
- Communication Standard: IEC 61850 (Editions 1 and 2)
- Network Redundancy: Supports PRP (Parallel Redundancy Protocol) and HSR
- Legacy Protocols: Modbus, DNP3, IEC 60870-5-103
- Time Synchronization: IEEE 1588 v2 High Precision Time Protocol
- Protection Functions: Directional/non-directional overcurrent and ground fault
- Advanced Features: Optional arc protection and high-speed output
- Physical Design: Draw-out plug-in design for rapid installation/testing
- HMI Interface: Large graphic display with customizable Single Line Diagram (SLD)
Product Introduction
When a feeder faults in a meshed distribution network, milliseconds dictate whether you get a localized trip or a cascading blackout. The ABB REF615E-D HBFDACADANB1BNN1XD-7700059450 is a dedicated digital relay built specifically for this exact scenario. It monitors overhead lines and cable feeders in utility and industrial systems, adapting to ungrounded, resistance-grounded, or impedance-grounded networks. Packed with directional overcurrent and ground fault protection, it isolates faults with high sensitivity and selectivity before they drag down the entire grid.
Why keep this specific relay in your spares inventory? Because when a primary protection IED dies, your system is legally and operationally exposed. This module supports IEC 61850 GOOSE messaging and HSR/PRP redundancy, meaning it integrates directly into modern substation automation without needing extra communication gateways. The draw-out plug-in design means a failed unit can be swapped in minutes during an outage window. Bottom line—it is the frontline defender of your distribution network.

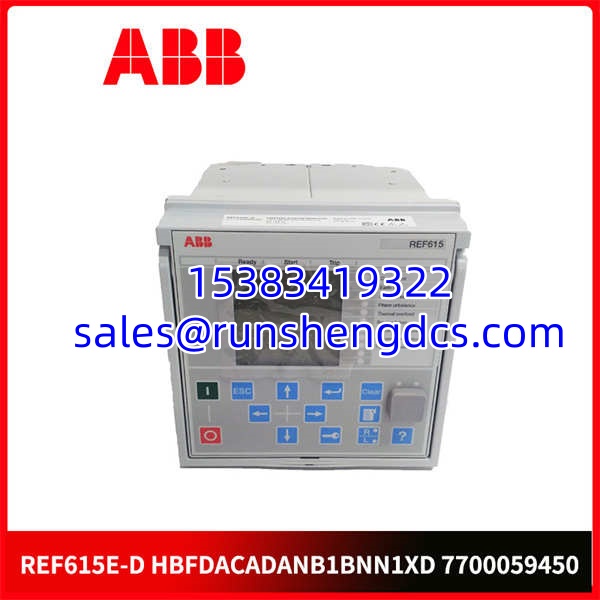

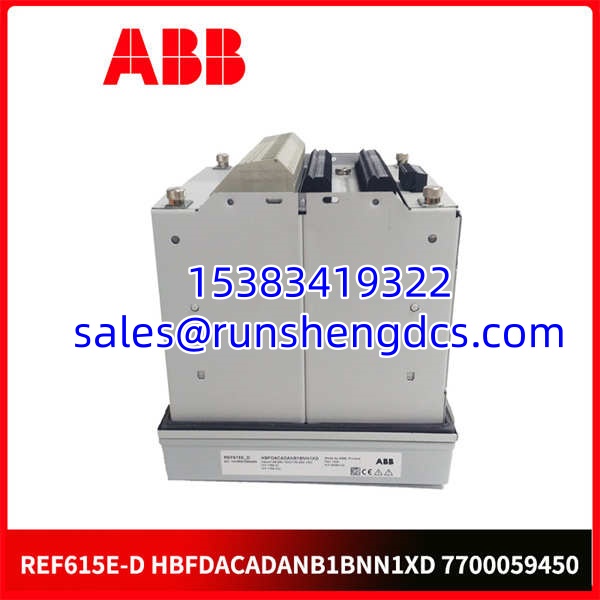

ABB-REF615E-D-HBFDACADANB1BNN1XD-7700059450
Troubleshooting Quick Reference
- Fault: Relay tripped unexpectedly / No visible fault | Cause: 70% chance of transient ground fault or misconfigured sensitivity | Relevancy: High | Quick Check: Navigate to the Fault Record menu (not just Event Log) | Fix: Review full waveform capture. If it was a transient, adjust ground fault settings. Reset via HMI.
- Fault: Communication dropped / SCADA blind | Cause: 60% chance of IEC 61850 GOOSE timeout or IP mismatch | Relevancy: Medium-High | Quick Check: Verify PRP/HSR switch status and IP configuration | Fix: Ping the relay. Check the substation LAN switch for port errors. Re-download CID file if network changed.
- Fault: HMI blank but control voltage present | Cause: 50% chance of internal power supply failure or display ribbon issue | Relevancy: Medium | Quick Check: Measure 48-250 VDC / 100-240 VAC at the rear terminals | Fix: If voltage is good but screen is dead, the internal PSU or display board is fried. Replace the module.
- Fault: Protection fails to operate during primary injection test | Cause: 80% chance of incorrect CT ratio or logic configuration | Relevancy: High | Quick Check: Verify CT/VT scaling parameters against the physical nameplate | Fix: Cross-check the configuration tool settings with the as-built single-line diagram.
Application Scenarios & Pain Points
- Meshed Distribution Networks with Distributed Generation: Traditional relays struggle with bidirectional fault currents from solar or wind tie-ins. The REF615E-D handles multi-fed networks and distributed generation natively, preventing false trips from reverse power flow.
- High-Reliability Substation Automation: Downtime for communication upgrades is unacceptable. With native IEC 61850-9-2 LE and GOOSE support, this relay eliminates the need for hardwired interlocks, drastically reducing copper wiring and commissioning time.
- Harsh Industrial Plants: Voltage sags and electrical noise plague manufacturing facilities. The wide 48-250 VDC / 100-240 VAC operating range ensures the relay stays alive even when plant power quality degrades severely.
- Real-World Case: A utility engineer faced intermittent nuisance trips on a 12 kV feeder after adding a solar farm. The old overcurrent relay couldn’t distinguish between a real fault and the solar inverter’s transient startup current. After swapping in the REF615E-D and configuring the multi-frequency admittance ground fault protection, the nuisance trips stopped completely. The relay’s advanced filtering ignored the inverter noise while maintaining true fault sensitivity. Always suspect the protection logic before blaming the primary equipment.

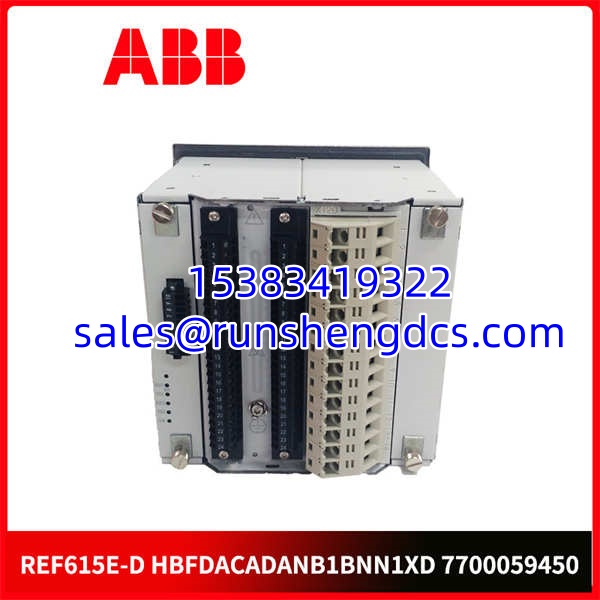

ABB-REF615E-D-HBFDACADANB1BNN1XD-7700059450
Compatible Replacement Models
- ✅ Drop-in Replacement: REF615E-D HBFDACADANB1BNN1XD (Exact Match). If you find this exact configuration code, it is a direct mechanical and electrical swap. No logic reprogramming required. Labor: 30 minutes for physical swap and secondary injection verification.
- ⚠️ Software Compatible: REF615K or newer REF615 revisions. These share the same Relion® 615 platform and IEC 61850 stack but may have updated hardware or firmware. Requires re-downloading the existing configuration file via the configuration tool. Labor: 2-4 hours for fitment, software restore, and full functional testing.
- ❌ Hardware Incompatible: REF542 or REF610. These are different product families with different chassis sizes, backplane connectors, and configuration software. Do not attempt to use these as a direct replacement without a full panel redesign and rewiring.
