Description
Key Technical Specifications
- Product Type: HMI touchscreen panel
- Product Family: ABB Panel 800
- Model: PP881
- Article Number: 3BSE092978R1
- Display Size: 10.1″
- Display Type: TFT/LED touchscreen
- Display Resolution: 1024×600 pixels
- Brightness: 500 cd/m²
- Processor: ARM9, 1 GHz
- Main Memory: 1 GB
- External Storage: 2 GB SSD, approximately 1.5 GB available for application storage
- Power Supply: +24 VDC, 18–32 VDC
- Operating Temperature: -10°C to +60°C
- Humidity: Up to 85%
- Housing: Cast powder-coated aluminum front housing
- Engineering Platform: Panel Builder 800 / Windows-based engineering environment
- Platform Architecture: .NET-based open architecture for multi-brand controller connection
Product Introduction

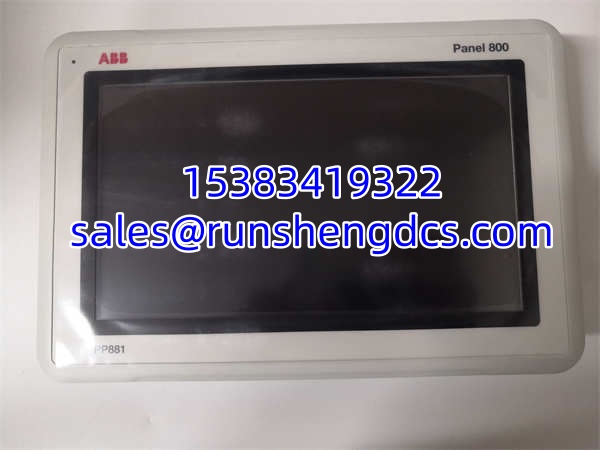

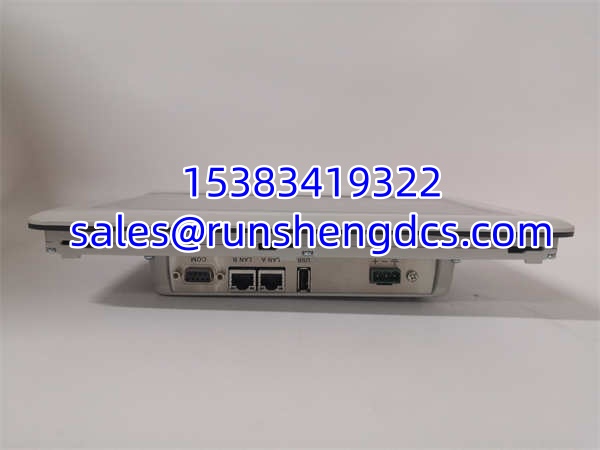

When an operator panel goes dark at 3 AM, the real question is not whether the HMI looks modern — it is whether the replacement matches the failed unit’s article number, display size, mounting, power rating, and project file. ABB PP881 / 3BSE092978R1 belongs to the Panel 800 HMI family and is used as a local operator interface for monitoring process data, acknowledging alarms, changing setpoints, and communicating with PLCs, DCS controllers, or other automation devices.
The practical value of PP881 is that it gives operations a working 10.1-inch graphical interface with 1024×600 resolution, 500 cd/m² brightness, ARM9 1 GHz processing, and 1 GB main memory, while running from a standard 24 VDC supply. That matters in control rooms, machine panels, and plant-floor cabinets where visibility, response time, and controller connectivity are more important than generic “touchscreen” labels.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check | Fix |
|---|---|---|---|
| No display / no power | 24 VDC supply missing, breaker open, wiring loose | Measure at HMI power terminals for 18–32 VDC | Restore correct 24 VDC; check fuses and supply wiring |
| Backlight on but no graphics | Corrupted project, boot failure, storage issue | Check for ABB/Panel 800 boot screens or error text | Reload application from Panel Builder 800 |
| Touch not responding | Touch calibration, screen damage, contamination | Clean screen; test touch in known good areas | Recalibrate if supported; replace if digitizer is damaged |
| Cannot connect to PLC/DCS | Wrong protocol, IP, node, cable, or port setting | Verify communication cable and controller port | Match protocol/address settings to the controller |
| Communication drops | Network cable, switch port, EMI, or grounding | Check Ethernet/serial cabling and shielding | Reseat cables; verify network path and grounding |
| Project will not download | Wrong HMI model, firmware mismatch, memory full | Confirm PP881 / 3BSE092978R1 and Panel Builder version | Use correct target; free storage; re-download project |
PP881
Application Scenarios & Pain Points
- Control-room operator panels: A failed HMI blocks local monitoring even if the PLC is fine. The pain is usually project restoration and communication setup, not just hardware replacement.
- Machine skids with local control: PP881 may be used for local setpoints, alarms, and status. The risk is swapping in a different Panel 800 size or article number and losing mechanical fit or project compatibility.
- Multi-controller environments: Panel 800 HMIs can connect to different controller brands, but only if the communication driver, address, and network settings are correct.
- Aging plant HMIs: Old panels can fail from backlight degradation, SSD/storage wear, power-supply aging, or damaged touch layers.
- Spare-parts confusion: PP875, PP881, PP883, PP886, and PP895 are all Panel 800 family members. Similar names do not mean drop-in compatibility.
