Description
Key Technical Specifications
- Material Code: IMHSS03
- Product Type: Hydraulic Servo Sub-module
- Power Supply: +5 VDC @ 576 mA, ±15 VDC @ 15 mA, +24 VDC @ 335 mA
- LVDT Excitation Frequency: 400 Hz to 15 kHz (Configurable)
- Analog Outputs: 4 total (2 primary servo coil, 2 redundant)
- Output Protection: Short-circuit and open-circuit safe (1 output failure won’t affect others)
- Operating Temperature: 0 °C to +70 °C
- Relative Humidity: 5% to 95% (up to 55 °C)
- Certifications: CE, CSA, FM (Class I Div 2 / Non-Incendive)
- System Compatibility: IMMFP01, IMMFP02, IMMFP03 MFP Modules

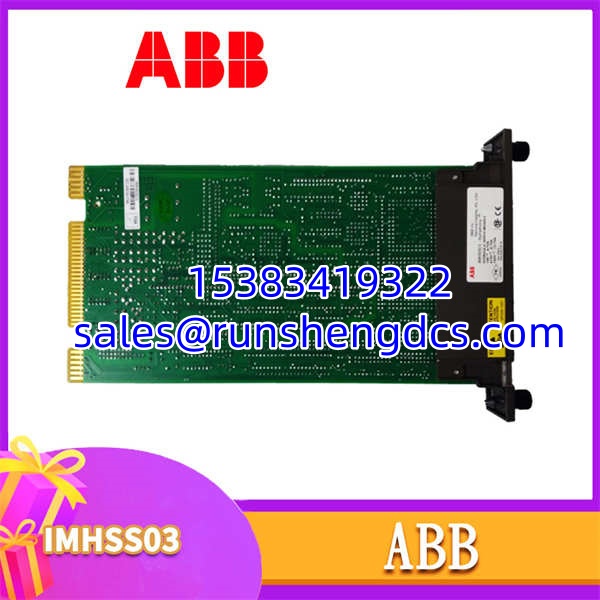

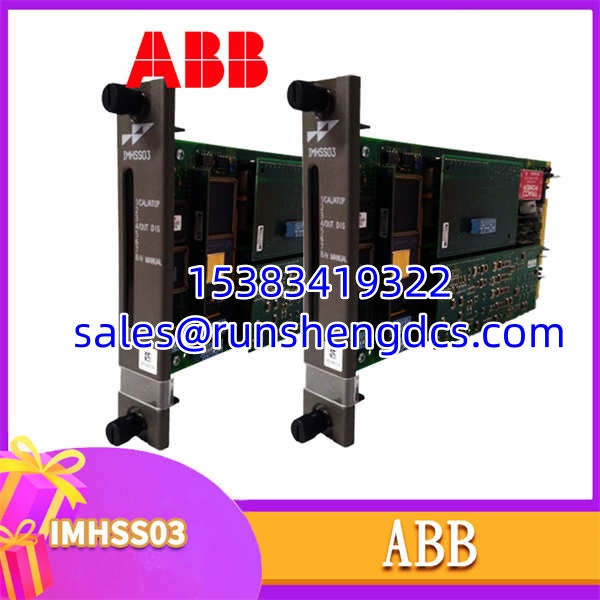

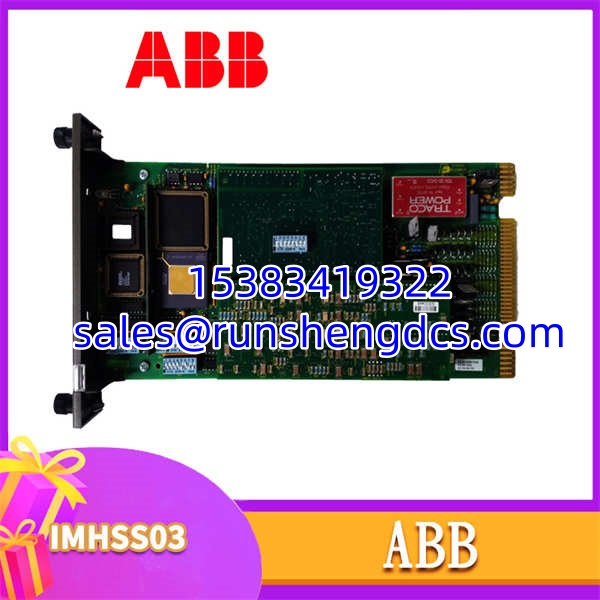

ABB-IMHSS03
Product Introduction
When a 500 MW steam turbine experiences a sudden load rejection, the governing valves must slam shut in milliseconds to prevent a catastrophic overspeed event. The ABB IMHSS03 is the critical hydraulic servo sub-module inside the INFI 90 system that translates digital position demands from the MFP processor into precise analog current signals for the servo valves. It continuously reads LVDT position feedback to ensure the valve stem is exactly where the control logic demands.
Why is this specific module a high-priority spare? Because it is the physical link between your digital control logic and massive mechanical actuators. The IMHSS03 supports redundant servo valve configurations and features isolated outputs where a short on one coil won’t kill the other. With a wide LVDT excitation range (0.4 kHz to 15 kHz) and configurable fail-safe modes (valve close, valve open, or hold-in-place upon LVDT failure), it ensures the turbine fails safely when sensors degrade.
Troubleshooting Quick Reference
- Valve Hunting / Oscillation | LVDT feedback noise or bad wiring | 70% chance it’s field sensor | Check LVDT shield grounding and core alignment | Verify LVDT frequency parameter (S5)
- Servo Output Drops to Zero | Output protection triggered (short circuit) | 60% chance it’s field wiring | Megger test servo valve coils to ground | Measure current at module output terminals
- LVDT Fault Alarm | Broken wire or excitation failure | 50% chance it’s physical layer | Measure LVDT excitation voltage at terminal block | Verify primary/secondary LVDT wiring (S3 config)
- Valve Fails Safe Unexpectedly | LVDT configured fail-mode triggered | 40% chance it’s parameter config | Check S4 fail-safe action parameter | Verify MFP quality flags for position feedback
Application Scenarios & Pain Points
- Steam Turbine Governing: High-pressure steam valves require micro-second response times; LVDT feedback drift causes the valve to constantly chase its setpoint, wearing out the servo valve spool.
- Gas Turbine Fuel Control: Fuel metering valves demand extreme precision; an I/H converter signal mismatch can cause lean blowout or over-fueling during startup.
- Hydroelectric Plants: Wicket gate positioning requires redundant feedback; a single LVDT failure must not cause the turbine to trip offline during peak generation.
Compatible Replacement Models
- ✅ Drop-in Replacement: IMHSS03 — Exact match. Verify LVDT frequency (S5) and fail-safe mode (S4) parameters before installing. No MFP reconfiguration needed.
- ⚠️ Software Compatible: IMHSS02 — Older generation HSS module. Same physical footprint but different internal processing. Requires MFP function block parameter verification. Budget 2-3 hours for validation.
- ❌ Hardware Incompatible: IMHSS04 — Designed for different valve actuator types and feedback configurations. Do NOT attempt to swap without full system re-engineering and valve recalibration.
