Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Product Family | ABB S800 I/O (Advant Master / AC 800M / 800xA) |
| Model | DSDI110AV1 |
| Order Code | 3BSE018295R1 |
| Module Type | Digital input module |
| Digital Inputs | 16 channels, 24 V DC |
| Isolation | Field-to-system galvanic isolation |
| Mounting | S800 single-width module; requires termination/base unit |
| Typical Applications | Status monitoring of switches, relays, valves, and sensors |
| Operating Temperature | -25 to +60 °C (S800 family typical) |
| Certifications | CE / industrial EMC compliance typical for S800 I/O |
| Exact Variant | Verify hardware revision, firmware, and termination unit from nameplate |
Product Introduction
A digital input module looks simple until a failed channel starts masking a real plant fault. The ABB DSDI110AV1 3BSE018295R1 is an S800-series isolated digital input module, used in Advant Master, AC 800M, and 800xA systems to bring field status signals into the controller.
It accepts 24 VDC digital signals and provides galvanic isolation between field wiring and the control system, helping protect the controller from ground loops, transients, and wiring faults. The module mounts in an S800 I/O assembly and requires a compatible termination unit for field connections. With 16 inputs, it is commonly used for monitoring push-buttons, limit switches, valve position feedback, relay contacts, and equipment run/stop status. Because I/O modules can vary by hardware revision and termination arrangement, always confirm the nameplate and project configuration before treating it as a drop-in replacement.
QA/QC Transparency SOP
- Intake & Nameplate Verification — Confirm DSDI110AV1, 3BSE018295R1, hardware revision, and serial number. Check for damaged connectors, burnt components, or corrosion on the termination interface.
- Visual & Mechanical Inspection — Inspect module housing, DIN-rail/clip engagement, backplane contacts, and termination unit interface. Verify no bent pins or loose locking features.
- Power & Diagnostics Check — Install in a compatible rack/termination assembly. Verify module power-up, LED indicators, and diagnostic status through the controller or engineering tool.
- Channel Verification — Apply 24 VDC to each input channel and confirm correct status recognition. Check for stuck-high, stuck-low, or intermittent channels.
- Isolation & Final QC — Verify field-to-system isolation integrity, confirm no cross-channel leakage, and record test results. Pack in anti-static material with nameplate photos and test summary.
Field Engineer Gotchas
- DSDI110AV1 vs DSDI110A confusion — DSDI110AV1 3BSE018295R1 is an I/O module, while DSDI110A 57160001-AAA belongs to the older S100/Advant OCS/MOD300 I/O family. They are not interchangeable.
- Termination unit mismatch — digital input modules require a compatible termination/base unit. Installing the module without the correct termination unit will prevent field wiring and may cause diagnostic faults.
- Channel count assumption — Some listings describe DSDI110AV1 as a 32-channel module, but the variant is commonly specified as 16 digital inputs. Always confirm from the nameplate and OEM documentation.
- Grounding and isolation expectations — Galvanic isolation protects the controller side, but improper field grounding can still cause false indications. Verify field common references before blaming the module.
- Legacy project documentation — In older 800xA or Advant Master projects, the module type in the hardware configuration must match the physical module. A mismatch can cause I/O mapping errors even if the module powers up.

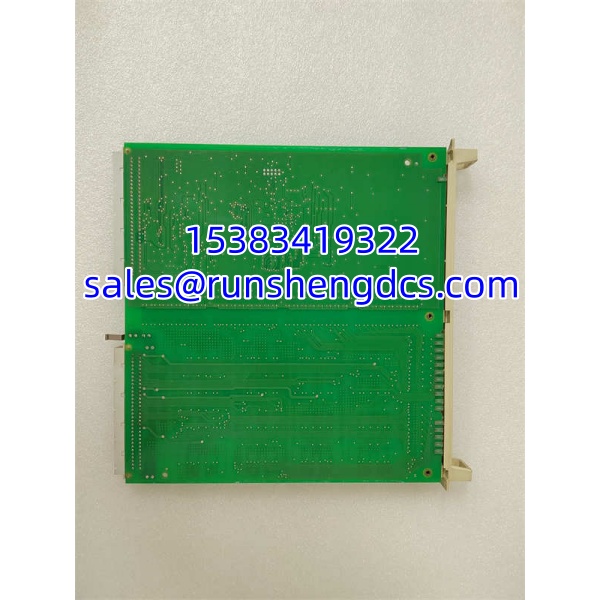

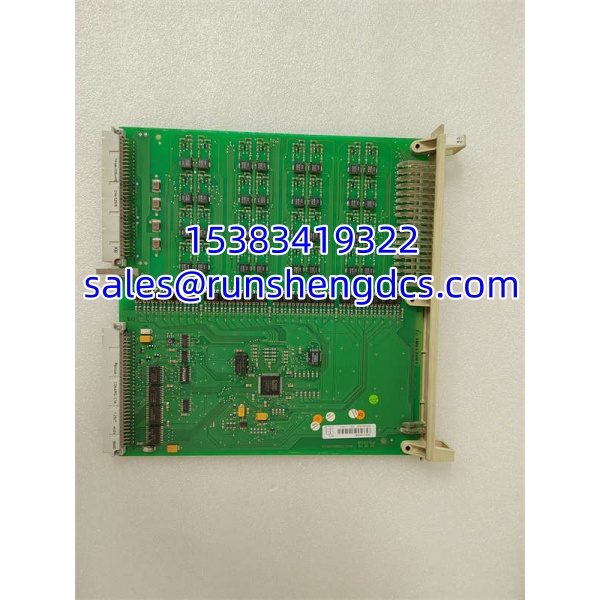

ABB DSDI110AV1 3BSE018295R1
Application Scenarios
- 800xA / AC 800M digital status monitoring — Reads valve position switches, motor run feedback, pressure switch status, and equipment permissive signals.
- Advant Master system maintenance — Replaces failed or suspect DI modules in existing Advant Master installations where I/O is used.
- Utility and process plant I/O expansion — Adds 24 VDC digital inputs for auxiliary skids, pump stations, water treatment, and HVAC control panels.
- Brownfield troubleshooting — Helps isolate whether a field signal fault is caused by wiring, the termination unit, or the input module itself.
FAQ
Yes. It is an -series digital input module used in Advant Master, AC 800M, and 800xA systems.
How many inputs does it have?
The variant is commonly specified as 16 digital inputs at 24 VDC. Confirm from the nameplate and OEM documentation, as some third-party listings may describe it differently.
Can it replace DSDI110A 57160001-AAA?
No. DSDI110A 57160001-AAA is an older S100/Advant OCS/MOD300 module and is not compatible with I/O assemblies.
Does it require a termination unit?
Yes. digital input modules require a compatible termination/base unit for field wiring.
What voltage does it accept?
24 VDC digital inputs, typical for industrial switch, relay, and sensor signals.
Is this module still available new from ABB?
Availability should be confirmed with ABB or an authorized distributor. Surplus and tested units are common in the secondary market; always request nameplate photos and test records.
