Description
Key Technical Specifications
- Part Number: 3BSE018144R1
- Module Type: INSUM Communication Interface
- Max MCU Capacity: Up to 128 MCUs per CI857 module
- Max AC 800M Capacity: Up to 6 CI857 modules per AC 800M controller
- Closed-Loop Speed: Typically 500 ms (assuming 250 ms control cycle)
- Power Supply: Powered directly via CEX bus (no external 24V needed)
- Gateway Support: Max 2 INSUM TCP/IP gateways per module
- Subnet Capacity: 4 LonWorks subnets per gateway (32 devices each)
- System Integration: Accessible via INSUM function blocks in Control Builder
- Key Features: Multi-point configuration, time allocation, and time stamping

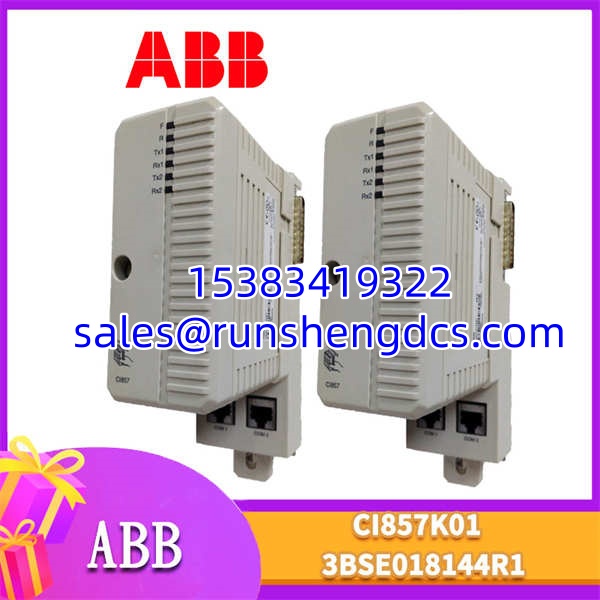

Product Introduction
When you are managing a massive switchgear lineup, running individual cables to every motor starter is a nightmare. The ABB CI857K01 (3BSE018144R1) acts as the central nervous system for this, integrating INSUM motor control directly into your AC 800M controller over standard Ethernet. It essentially turns your DCS into a centralized motor management hub.
Why spec this module? Functional integration and speed. It supports multi-point configuration and precise time stamping, which is a lifesaver when you are trying to sequence motor operations or troubleshoot trip events. With a closed-loop speed of 500 ms, it handles interlocks between motors fast enough to keep the process running safely. Bottom line—it consolidates your motor data and keeps your rack wiring clean.
Troubleshooting Quick Reference
- Fault: Module fails to power up | Cause: CEX bus backplane connection issue | Relevancy: High (90%) | Quick Check: Reseat module on AC 800M backplane, check adjacent PSU | Fix: Clean backplane pins, verify CEX bus voltage
- Fault: Motors not responding / Comm loss | Cause: IP subnet mismatch or gateway failure | Relevancy: High (85%) | Quick Check: Ping INSUM TCP/IP gateways, verify subnet masks | Fix: Check Ethernet cabling, verify gateway configuration
- Fault: Time stamp errors / Sync loss | Cause: Network latency or NTP server failure | Relevancy: Medium (60%) | Quick Check: Check system clock in Control Builder, ping NTP | Fix: Verify network switch configuration, check NTP routing
- Fault: Intermittent dropouts | Cause: EMI on Ethernet or bad port | Relevancy: Medium (50%) | Quick Check: Swap CAT6 cable, test alternate switch port | Fix: Route cables away from VFDs, replace patch cable

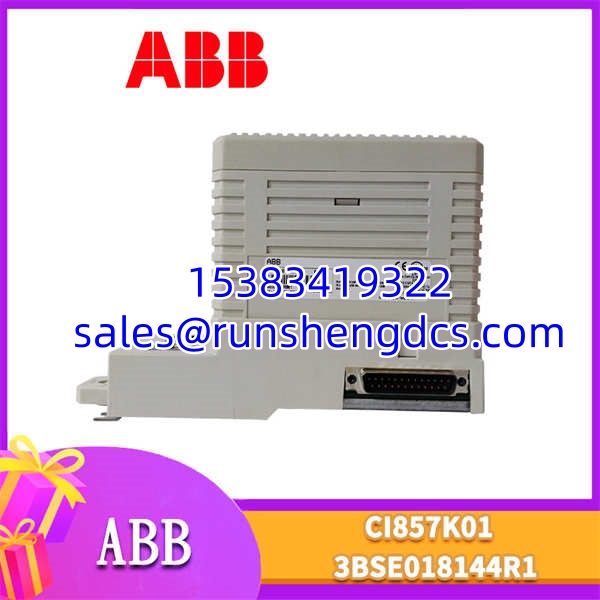

ABB-CI857K01–3BSE018144R1
Application Scenarios & Pain Points
- Water/Wastewater Plants: Managing dozens of pump stations across a wide facility. Standard Ethernet distances and centralized INSUM configuration eliminate the need for local PLCs at every lift station.
- Mining & Conveyors: Long material handling lines require precise motor sequencing. The 500 ms closed-loop speed ensures upstream belts stop before downstream belts jam.
- Oil & Gas Refining: High EMI environments from massive VFDs. Standard Ethernet integration provides better noise immunity than legacy serial fieldbuses.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for CI857K01 (3BSE018144R1). Verify your AC 800M CPU (PM864, PM866, etc.) has enough CEX bus capacity and firmware support for INSUM.
- ⚠️ Software Compatible: CI857 (Non-K01 revision). Same physical footprint, but verify hardware revision suffix. May require minor Control Builder hardware config updates. Budget 1-2 hours of engineering time.
- ❌ Hardware Incompatible: CI856 (S100 I/O) or CI858 (DriveBus). Completely different communication protocols and backplane logic. Do not attempt to substitute for motor control applications.
