Description
Key Technical Specifications
- Primary Part Number: 216AB61
- Sub-Assembly 1: HESG324013R0100
- Sub-Assembly 2: HESG435572P1
- Module Type: Binary Output / Digital Control Unit
- Operating Voltage: 24 V DC
- Display: Built-in LED panel for real-time status feedback
- Maintenance Feature: Supports hot-swapping in adjacent/intelligent slots
- Protection: Overheat, overload, and short-circuit protection
- Software Support: Online modification without limits
- System Integration: Seamless integration with other industrial control systems
- Diagnostics: Advanced built-in diagnostic tools for troubleshooting
- Target Industries: Oil, gas, petrochemical, and power generation
Product Introduction
When a legacy DCS system starts dropping outputs, the binary output module is usually the first suspect. The ABB 216AB61 (often sold as a complete assembly with HESG324013R0100 and HESG435572P1) acts as the physical muscle in these automation racks. It takes the digital logic from the central controller and translates it into binary signals to drive external field devices, ensuring your plant actually responds to the software’s commands.
Why keep this specific assembly on your critical spares list? Field reliability and fast diagnostics. It features built-in LED status indicators and advanced self-diagnostics, making it incredibly easy to pinpoint faults during a 3 AM troubleshooting session. Plus, it supports hot-swapping, meaning you can replace a failed module without powering down the entire rack. Bottom line—having the exact OEM assembly prevents extended downtime when a control board fails.
Troubleshooting Quick Reference
- Fault: Output channel fails to activate | Cause: Internal relay/transistor failure or blown fuse | Relevancy: High (85%) | Quick Check: Check built-in LED status, measure 24 V DC at output terminal | Fix: Replace module if LED is off but command is active
- Fault: Intermittent signal loss | Cause: Loose backplane connection or dust | Relevancy: Medium (70%) | Quick Check: Reseat module, inspect backplane pins | Fix: Clean contacts, verify locking mechanisms
- Fault: Module overheat warning | Cause: Short circuit on field wiring or poor ventilation | Relevancy: Medium (60%) | Quick Check: Measure field wiring resistance, check cabinet fans | Fix: Isolate shorted field device, improve airflow
- Fault: Diagnostic fault code | Cause: Internal hardware degradation | Relevancy: High (90%) | Quick Check: Read diagnostic register via engineering software | Fix: Schedule module replacement during next maintenance window

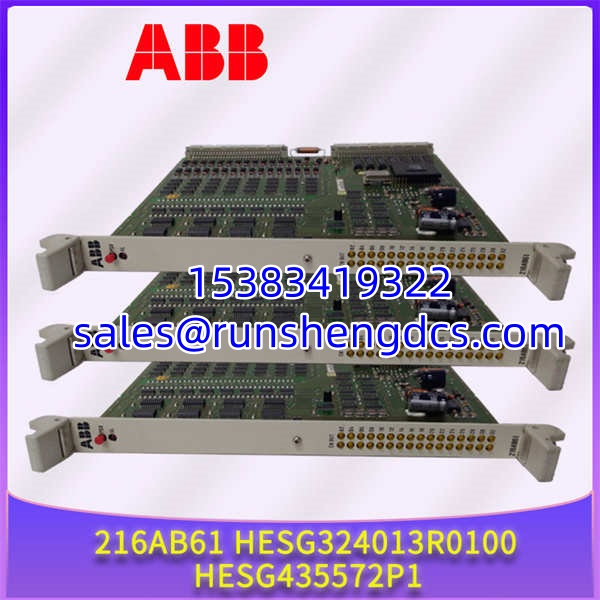

ABB-216AB61-HESG324013R0100-HESG435572P1
Application Scenarios & Pain Points
- Petrochemical Plants: Highly explosive environments demand zero-tolerance for control failures. The robust protection circuits in this module prevent internal shorts from escalating into hazardous situations.
- Power Generation: Continuous turbine control requires flawless binary switching. Fast response times ensure safety valves and actuators operate exactly when commanded.
- Water Treatment Facilities: Remote pump stations operate in high-humidity conditions. The conformal coating and sealed design protect the internal electronics from moisture-induced corrosion.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for 216AB61-HESG324013R0100-HESG435572P1. Verify the hardware revision suffix matches your existing backplane to avoid pinout conflicts.
- ⚠️ Software Compatible: Newer ABB digital output revisions. May require parameter adjustments in the DCS configuration software and a brief system outage for re-download. Budget 2-4 hours of engineering time.
- ❌ Hardware Incompatible: Non-ABB DCS boards or generic PLC I/O modules. Completely different backplane architecture and proprietary communication protocols. Do not attempt to adapt.
