Description
Key Technical Specifications
- Model Number: IC698ETM001
- Manufacturer: GE Fanuc / Emerson Automation
- Series: PACSystems RX7i
- Processor Speed: 200 MHz Dedicated Ethernet Processor
- Ethernet Ports: 2x 10/100 Mbps Auto-Sensing RJ45
- Serial Port: 1x RS-232 Station Management Port (9-pin D-sub)
- Supported Protocols: TCP/IP, SRTP, Modbus TCP, EGD
- Current Consumption: 1.5A Max at +5 VDC
- Operating Temperature: 0°C to 60°C
- Topology Support: Daisy-chain, Star, and Ring

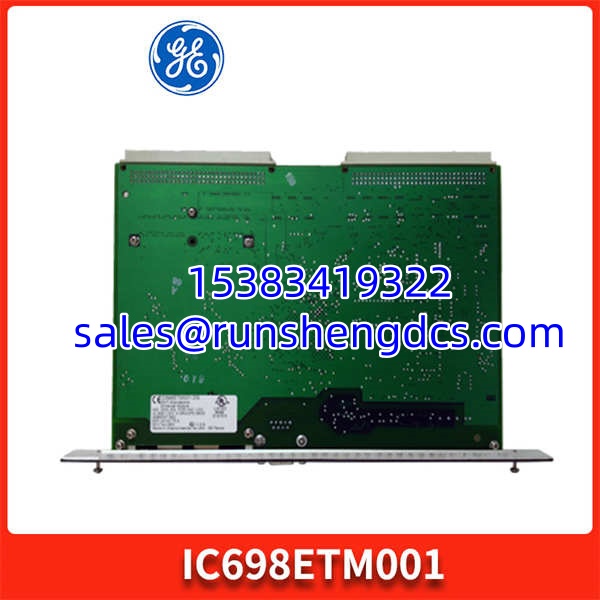

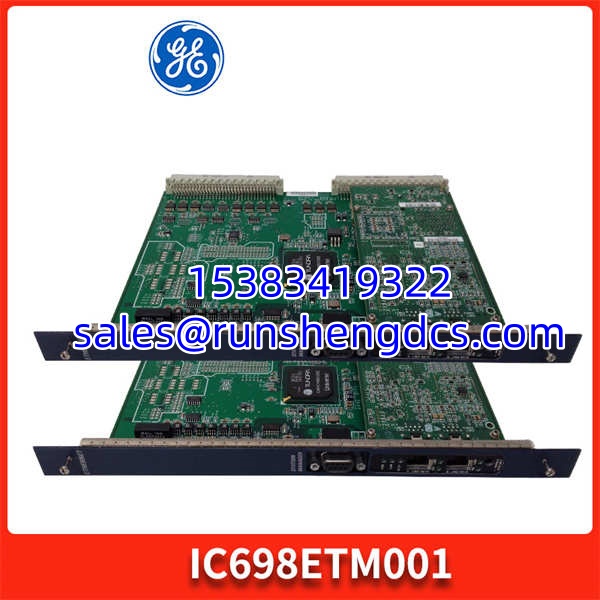

GE-IC698ETM001
Functional Role & Application Analysis
The GE IC698ETM001 is a dedicated high-performance Ethernet interface module for the PACSystems RX7i platform. It solves the need for fast, reliable network integration by providing dual auto-sensing 10/100 Mbps ports and a built-in 200 MHz Ethernet processor. This module handles heavy network traffic independently, preventing communication bottlenecks from slowing down your primary CPU’s control logic.
It supports critical industrial protocols like SRTP, Modbus TCP, and EGD, allowing seamless data exchange with HMIs, SCADA systems, and other controllers. The integrated serial station management port also simplifies initial configuration and diagnostics without tying up the main system ports.
Typical use cases include:
- SCADA & HMI Integration: Providing high-speed TCP/IP and SRTP connections for real-time operator monitoring and data logging.
- Distributed Control Networks: Using EGD (Ethernet Global Data) for fast, deterministic peer-to-peer data exchange between multiple RX7i controllers.
- Legacy Network Upgrades: Replacing older serial-only communication setups with modern Ethernet infrastructure while maintaining existing I/O investments.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable communication module in a networked control system is far greater than its purchase price. We have established a rigorous, multi-stage testing process to ensure every IC698ETM001 we ship is 100% functional and ready for critical service.
- Visual & Component Inspection: All modules undergo professional cleaning and detailed visual inspection to ensure there is no physical damage, corrosion, or compromised solder joints on the PCB.
- Live System Test: The module is installed in a live RX7i test rack and run for a minimum of 24 hours to verify continuous operation, power draw, and PCI backplane communication.
- Network & Function Diagnostics: We connect dual Ethernet cables to test port auto-negotiation, verify Modbus TCP and SRTP protocol responses, and validate the serial management port configuration.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

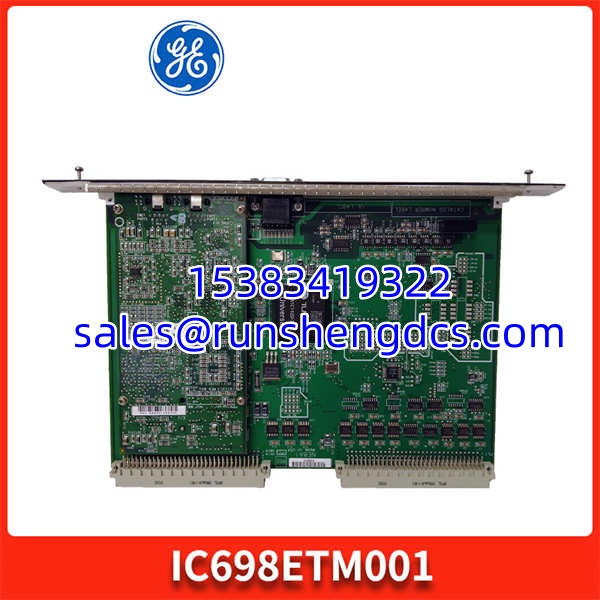

GE-IC698ETM001
Compatibility & Migration Paths
To ensure this IC698ETM001 is 100% compatible with your existing RX7i framework, you must check these key compatibility points. Failure to verify this is a common project risk that can delay commissioning.
- Firmware Compatibility: You must confirm your Proficy Machine Edition (PME) software version supports the IC698ETM001. Older versions may not recognize this specific Ethernet module.
- IP Address Configuration: This module uses a single IP address for both Ethernet ports. Ensure your network architecture accounts for this when configuring routing and subnet masks.
- Power Supply Load: This module consumes up to 1.5A at +5 VDC. Verify your RX7i power supply has sufficient headroom to support this module alongside your CPU and I/O configuration.
- Get Expert Help: Unsure about your system’s network configuration or power budget? Contact our technical team today for a free compatibility check before placing your order.
