Description
Key Technical Specifications
- Form Factor: 19-inch EIA Standard Rack
- Slot Capacity: 14 Available Module Slots
- Mandatory Left Slots: Slot 1 (TDI/RIM) & Slot 2 (Power)
- Mounting Option: 02 = Full-size Rack Mount (19″ EIA)
- Compliance Option: 01 = CE Marking
- Operating Temp: -30°C to +65°C
- Humidity: 5% to 95% (Non-condensing)
- Dimensions: 48.26cm x 34.92cm x 26.59cm
- Weight: 4.5 kg
- Power Compatibility: Accepts 3500/15 Power Modules
- Interface Compatibility: 3500/20 RIM or 3500/22 TDI

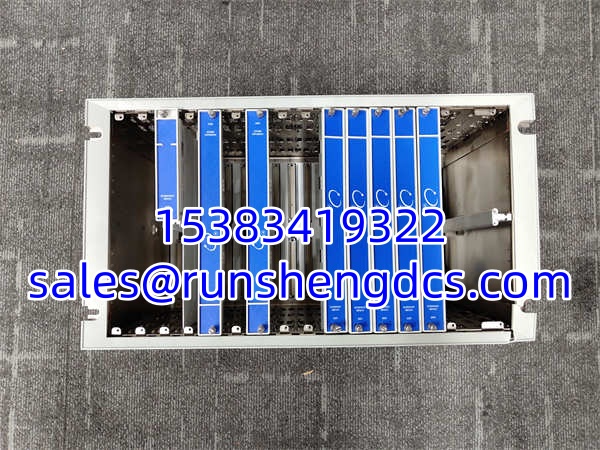

BENTLY 3500/05-01-02-00-00-00
Product Introduction
Modules are useless without a home. The 3500/05-01-02-00-00-00 is the physical backbone of the Bently Nevada 3500 TSI system. It’s a 19-inch steel chassis with 14 slots, providing the backplane bus for module-to-module communication and routing power from the 3500/15 supply to the monitors. If this frame warps or the backplane traces corrode, your entire turbine protection system becomes a paperweight.
Why does the part number suffix matter? The “01” means 19-inch full size. The “02” means rack mount. The “01” at the end means CE compliance. Swap any of those, and you might have a physical fitment issue or a regulatory headache during an audit. Honest assessment: These racks are heavy and durable, but the backplane connectors wear out from years of hot-swapping modules. Check the slot pins for bending before you slide in a $3,000 monitor card.
Troubleshooting Quick Reference
- Modules Won’t Power Up: 80% chance it’s the 3500/15 Power Supply, not the rack. Measure backplane voltage at an empty slot. If 0V, check the power module fuses.
- Intermittent Comm Loss: Backplane connector oxidation. Reseat all modules. Clean the backplane contacts with electronic contact cleaner. Check for vibration-induced loosening.
- Module Not Recognized: Wrong slot placement. Power MUST be in Slot 2. TDI/RIM MUST be in Slot 1. Monitors go in Slots 3-14. Verify dip-switches on the TDI match the rack address.
- Ground Loop Noise: Rack not bonded to earth. Verify the grounding lug on the back of the 3500/05 is connected to a clean earth ground.
- Physical Damage: Dropped or warped frame. Inspect the backplane for cracked solder joints. If the frame is bent, do NOT force modules in. Replace the chassis.
BENTLY 3500/05-01-02-00-00-00
Application Scenarios & Pain Points
- Power Plant Turbine Protection: API 670 compliance requires dedicated hardware. This rack holds the vibration, displacement, and relay modules that trip the turbine on overspeed.
- Refinery Compressor Monitoring: Harsh environments with high vibration. The rack’s backplane connections are the weak point. Regular preventive maintenance reseating is mandatory.
- System Upgrades: Migrating from 3300 to 3500. The 3500/05 rack is the starting point. You can reuse the rack if the backplane is healthy, saving significant capital.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3500/05-01-02-00-00-00 (Exact match). The “01” at the end may vary (e.g., -01 vs -02) based on revision, but functionally identical. No config changes.
- ⚠️ Software Compatible: 3500/05-01-02-00-00-01 (Different revision). Same physical footprint, same slot count. May require firmware update on the TDI or power supply. Budget 1 hour for validation.
- ❌ Hardware Incompatible: 3500/05-02-XX-XX-XX-XX (Mini Rack). 12-inch frame with only 7 slots. Will NOT fit in a 19″ EIA cabinet without an adapter panel. Do not buy this expecting a direct swap for a full-size rack.
